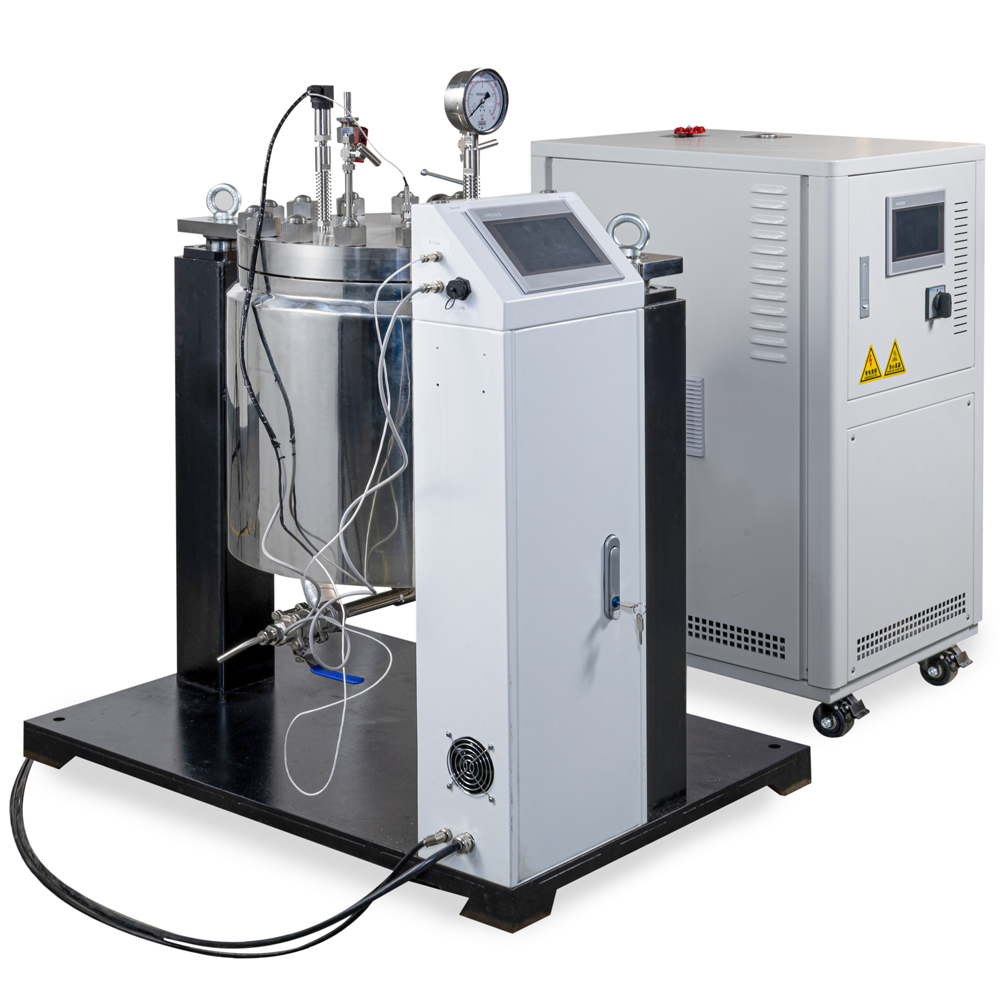

Pressure Vessel & Gas Cylinder Explosion Test Systems
Pressure Vessel & Gas Cylinder Explosion Test Systems is suitable for testing the burst deformation and yield pressure of gas cylinders or pressure vessels. It can automatically judge the burst pressure value and find the yield point through the pressure-water inlet volume-time curve.
Standard:
GB 15385 Hydrostatic test blasting method for gas cylinders; GB 4351 Portable fire extinguishers; GB 81095 Trolley-type fire extinguishers;
GB 17258 Compressed natural gas cylinders for automobiles; ISO 11439 High-pressure gas cylinders for natural gas automobiles;
ISO 9809 International standard for steel cylinders; ECE R110 Compressed natural gas for vehicle propulsion systems; other standards.
Technical Parameters:
Pressure range: 0~200MPa; (can be higher)
Constant voltage range: 5%~100%FS;
Test medium: water, oil, etc. (please consult for gas explosion) Temperature of this medium: normal temperature; (optional high or low temperature)
Test station: 1;
Pressurization rate: ≤0.5MPa/S; (can be set according to customer requirements)
Pressure measurement accuracy: ±0.5%FS; (higher accuracy optional)
Pressure control accuracy: ± 1% FS;
Pressure collection frequency: ≥1000Hz;
Deformation measurement method: weighing, flow meter or measuring cylinder;
Deformation measurement accuracy: ±1% FS;
Timing range: 0~999min;
Driving air: 0.5MPa≤P≤0.8MPa.
