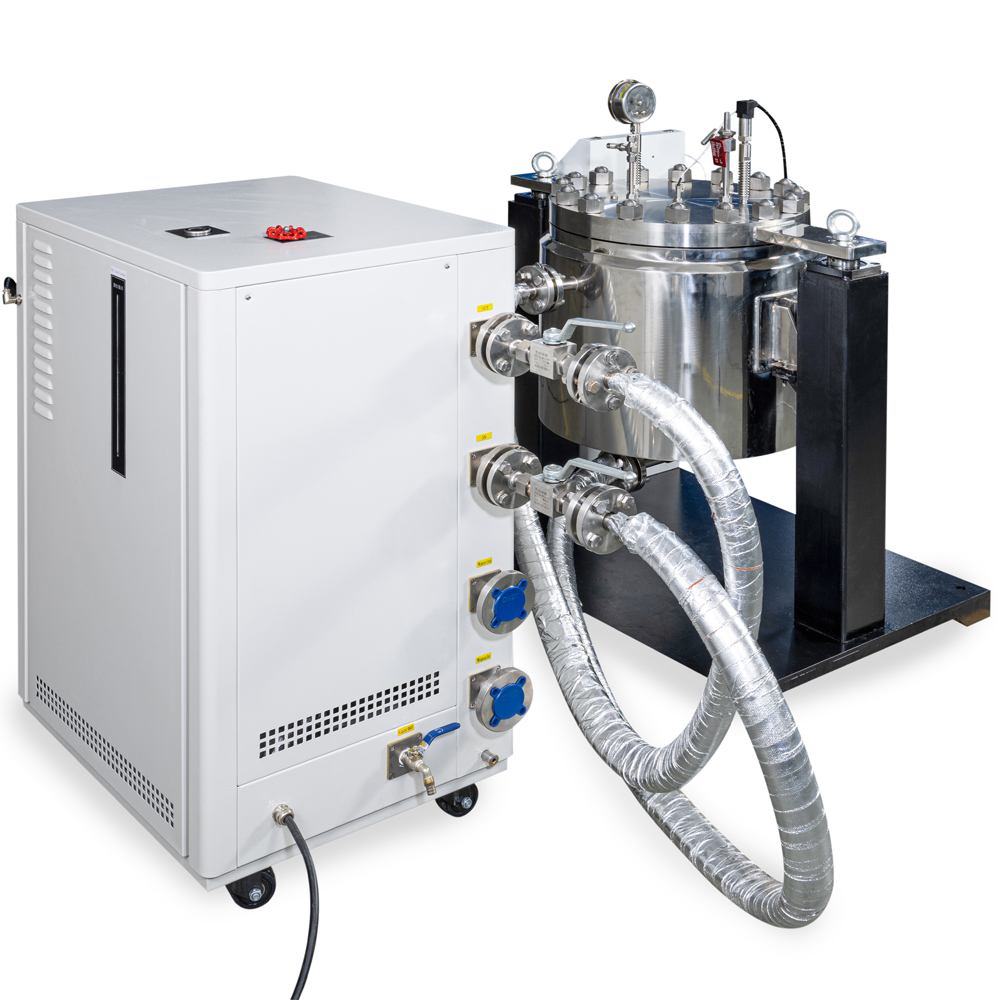

Gas Cylinder Valve Test System

Gas Cylinder Valve Test System

Gas Cylinder Valve Test System is applied for cyclic fatigue testing, pressure resistance, air tightness performance and other aspects of testing of CNG, LNG & LPG and other gas cylinder valves. It is suitable for CNG & LNG & LPG pressure regulating valves, pressure reducing valves, manual cylinder valves, solenoid valves and stop valves. , filters and other valves.

Technical Parameters:

1. Cyclic fatigue test (water pressure)

Test pressure: 1-30Mpa;

Test medium: water (high temperature), alcohol (low temperature) or other liquids such as

water-glycol mixture;

Test pipeline: 1-3 lines; (expandable)

Number of pulses: 0-10 times/min;

Pressure accuracy: ±0.5%FS;

Test temperature: -45°C~100°C;

Timing range: 0~10000h;

Driving air: 7bar compressed air;

Driving power: AC 220V.

2. Cyclic fatigue testing machine (air pressure)

Test pressure: 0-30MPa;

Test medium: air, nitrogen or other gases;

Test pipeline: 1-3 lines; (expandable)

Cycle time: 10±2 seconds;

Pressure accuracy: ±0.5%FS;

Test temperature: -45°C~100C;

Timing range: 0~10000h;

Driving air: 7bar compressed air;

Reference standards: ISO 15500, ECE R:110 design and manufacturing.

3. Pressure testing machine

Test pressure: 1-150MPa:

Test medium: water, oil, alcohol and other media;

Test pipeline: 1-3 lines; (expandable)

Pressure accuracy: ±0.5%FS;

Driving air: 7bar compressed air;

Timing range: 0~10000h.

4. Air separation testing machine

Test pressure: 1-40MPa;

Test medium: air, nitrogen or other gases;

Maximum flow: 80 liters/min;

Test pipeline: 1-3 lines; (can be expanded)

Test temperature: -45°C~100°C;

Timing range: 0~10000h;

Driving air: 7bar compressed air.
