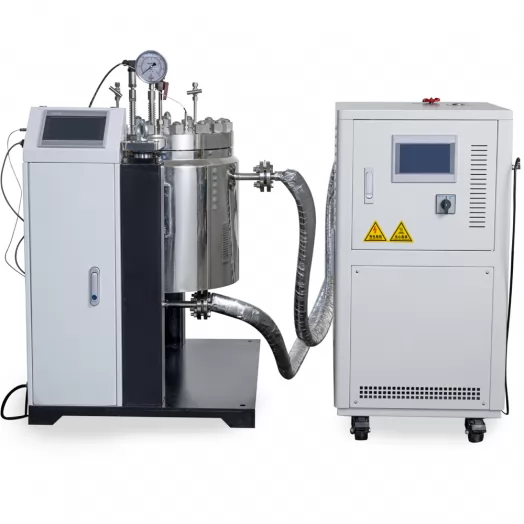

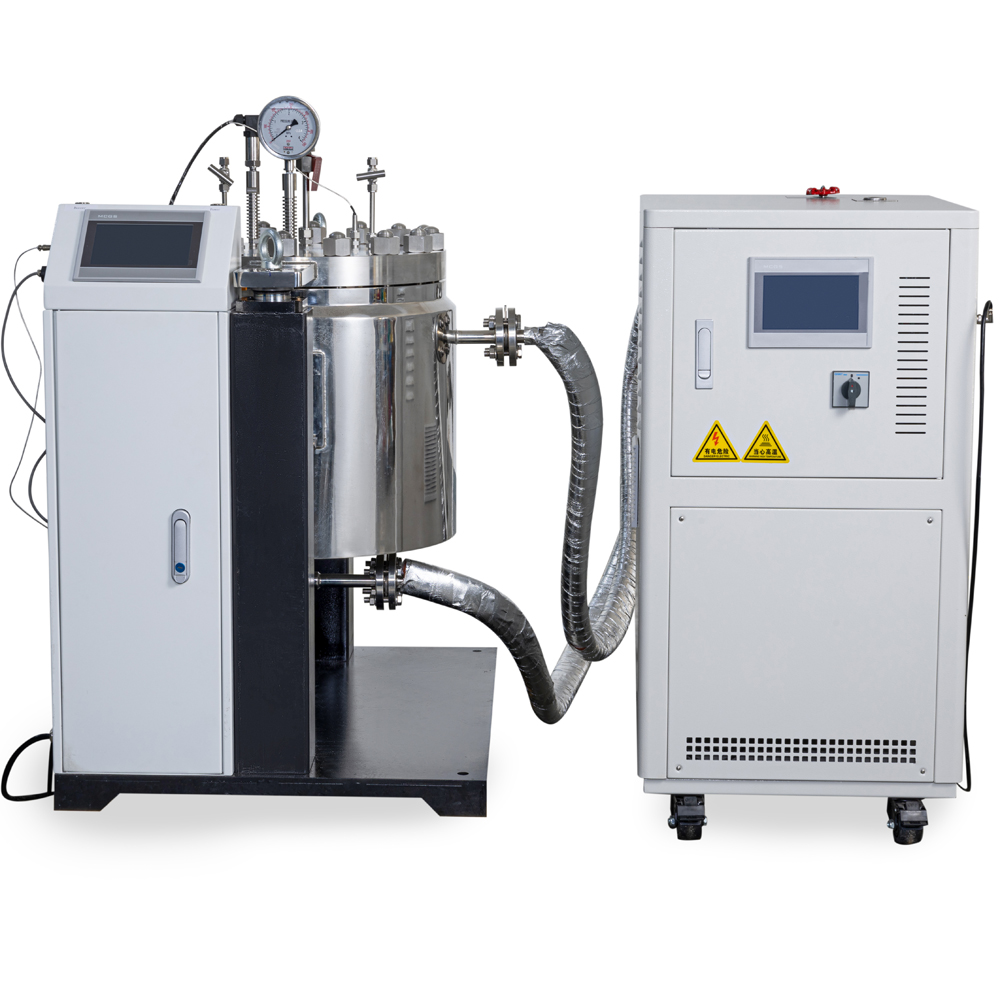

Cylinder Valve Performance Test System
Cylinder Valve Performance Test System is developed, designed and manufactured in accordance with relevant national mandatory standards, and is suitable for functional performance testing and type testing of various Cylinder valves. The equipment is widely used in Cylinder valve manufacturers, scientific research institutes, testing institutions and other places.
Standard:
ISO 10297 Transportable gas cylinder valves - Technical requirements and type testing; GB 15382 General technical requirements for gas cylinder valves
GB 17926 Vehicle compressed natural gas cylinder valve; ISO 15500 Road vehicle, compressed natural gas (CNG) fuel system components;
GB 7512 Liquefied petroleum gas cylinder valve; GB 10879 Dissolved acetylene cylinder valve:
GB 17878 Cylinder valves for industrial non-refillable welded cylinders; GB 18299 Integrated valves for liquefied petroleum gas cylinders; other standards.
Pilot Projects:
A. Cylinder valve durability test
A.1 Technical parameters:
Test pressure: 0.05~30MPa;
Opening frequency: 8~15 times/min, 10S±2S/or 2 times/min;
Opening and closing stroke: ≤4 turns; (can be set)
Number of tests:≮1 million times,
Test medium: air or nitrogen; (please consult for special media)
Test environment temperature: normal temperature or -50~150C; (please consult for special temperature requirements)
Temperature fluctuation: ±1℃;
Temperature uniformity: ≤± 2℃;
System output torque: 20N.M;
Test station: 1~5 stations;
Torque control accuracy: ±0.3NM;
Torque measurement accuracy: ±0.5%FS
Driving air: 0.6Pa≤P≤0.8MPa;
Power requirements: AC380V 50Hz;
Control mode: automatic.
A.2 Functions and features
The control components use servo motors and imported torque sensors to control the opening and closing of the valve, with small inertial impact and stable control;
Microcomputer is used to control the test process, and the pressure-time curve, test pressure and other values are displayed in real time. The test results can be automatically saved or printed out, and the test results can be automatically saved after power failure;
Computer data acquisition and processing, printing out environment/medium temperature, cycle number and cycle pressure waveform;
The opening and closing torque stroke of the cylinder valve can be set;
You can freely set the requirements for the number of operating cycles during the test, and the test can be automatically stopped when the requirements are met;
It has a power-down protection function. After a power outage, the system automatically relieves pressure and terminates the test to maximize the safety of operators and equipment;
The leakage of the specimen can be a set alarm point. When the leakage reaches a certain level, the system will automatically alarm and stop working, and the computer will still maintain power supply.
B. PRD pressure relief device test
Discharge performance;
Thermal relief and compound relief tests;
Accelerated life testing;
Thermal cycling and alternating tests;
B.1 Technical parameters:
Maximum working pressure: 40MPa;
Medium: high pressure air;
Pressure sensor accuracy: ±0.5%FS;
Pressure sampling frequency: ≥200Hz;
Pressure control accuracy: ≤1%FS;
Temperature range: -50~800C, fluctuation range: ±1°C;
Temperature uniformity: ≤ soil 2°C.
B.2 Equipment features:
Automatically control output pressure and pressure holding time;
Design and production based on standard ISO 15500;
Automatically measure temperature and pressure and record according to test requirements;
Real-time time and pressure curves, real-time temperature and time display output, convenient for users to observe;
High-speed pressure acquisition reaches 5ms, making the data more reliable;
This software automatically backs up the collected data and can print out reports in a standard format;
The software is prepared with multiple interfaces and provides different operation interfaces for different experiments;
Remote control and the system itself has safety protection measures to ensure the safety of pressure testing;
High and low temperature chambers and high and low temperature chambers are used for accelerated life and thermal cycle tests. They are economical, practical and compact in structure;
The high-temperature heating furnace is used for high-temperature environment heating in bench tests.
C. Current limiting device test
Current limiting action test;
Current limiting performance test.
D. Oxygen provocation test.
