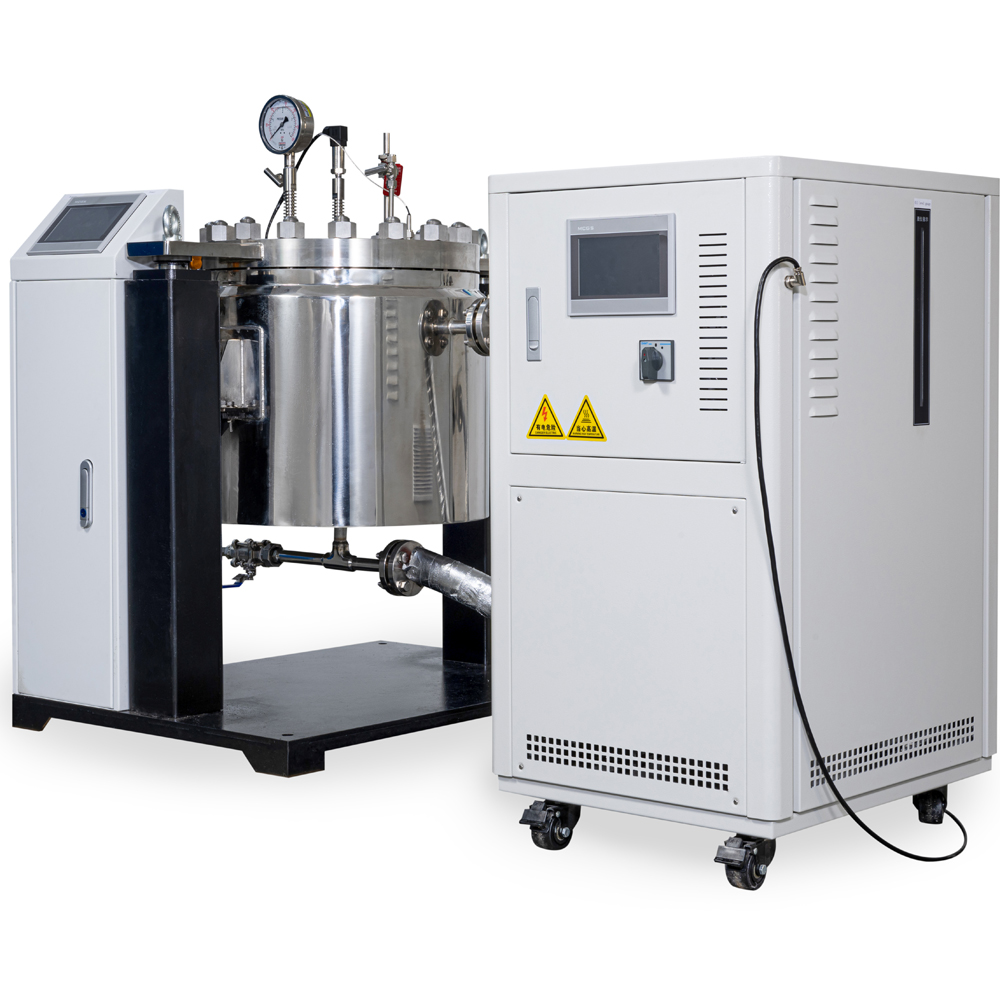

Cylinder Valve Durability Life Test System
Cylinder Valve Durability Life Test System is applied for various types of Cylinder valves, such as liquefied gas cylinder valves, vehicle compressed natural gas cylinder valves, dissolved acetylene gas cylinder valves, welding cylinder valves, liquefied petroleum gas cylinder integrated valves and other small valves (Including self-closing devices) durability test, simulate operating conditions, conduct opening and closing life test, detect opening torque, measure sealing performance, etc.
Standards:
JB/T 8858; JB/T 8859; JB/T 8860; JB/T 8861; GB/T 7512;
JB/T 8862;JB/T 8863: EC60730-2-8-2000: Other standards
(Can detect water hammer pressure peak according to standards)
Technical Parameters:
Test medium: water;
Test pressure range: 0-50MPa;
Pressure measurement accuracy: ±0.5% FS;
Pressure control accuracy: ± 1%FS;
Power requirements: 220V AC/380V AC;
Design driving torque: Max 5000NM;
Drive mode: motor drive/motor drive; (select according to the size of the torque)
Drive torque detection accuracy: 1%fs;
Rotation angle control accuracy: ±1°;
Switching frequency: 3~10 times/minute.
