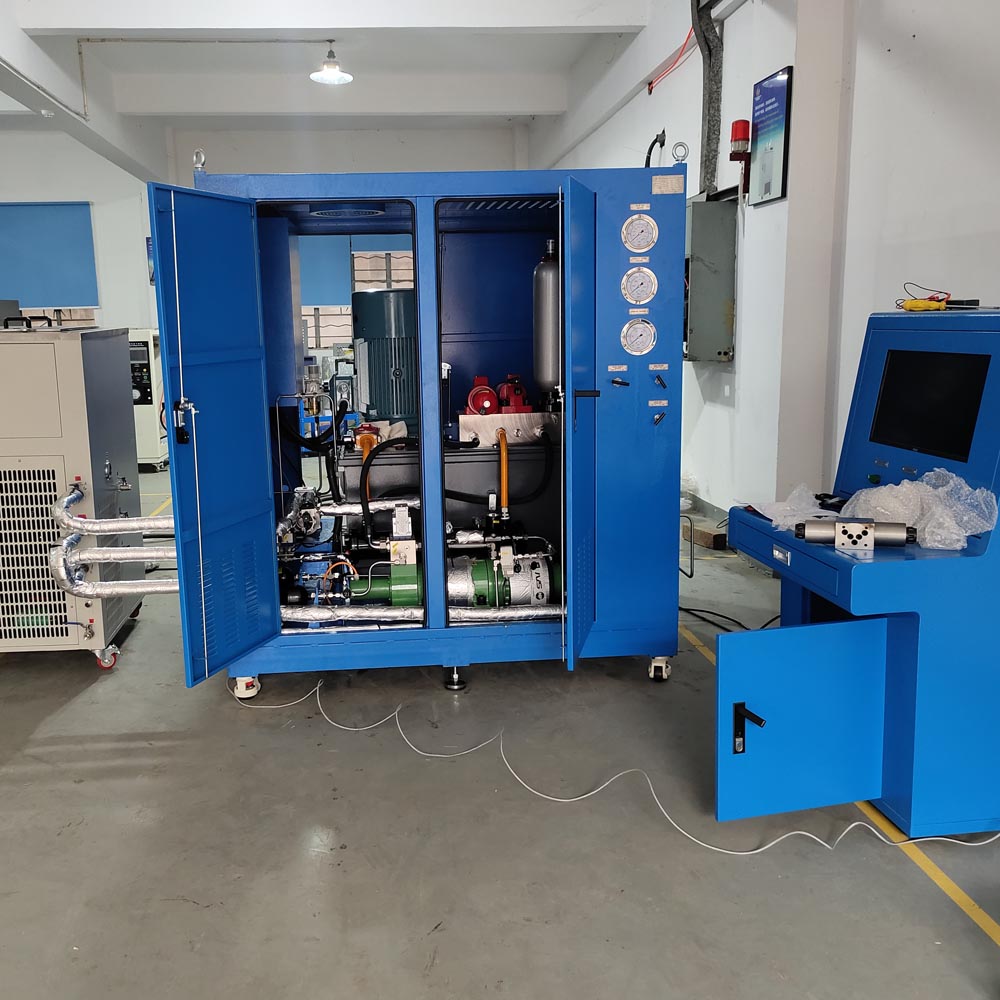

Valve Static Pressure Test System
Valve Static Pressure Test System is applied for static pressure life testing of various globe valves, plug valves, check valves , ball valves, regulating valves, valve groups and other high-pressure valves and instrument valves, and can also test valve torque and valve switching Fatigue life testing.
Standard:
JB/T 8858|JB/T 8859|JB/T 8860|JB/T 8861|JBT 8862
JB/T 8863| I EC60730-2-8-2000 (can detect water hammer pressure peak according to the standard), etc.
Technical Parameters:
Test medium: water or oil; (please consult for other media)
Test pressure range: 0-100MPa; (can be higher
Pressure measurement accuracy: 0.5% FS; (can be higher)
Pressure control accuracy: 1%FS:
Power requirements: 220V AC/380V AC
Design driving torque: Max 5000NM
Drive mode: Motor drive/Motor drive: (select according to torque size )
Driving torque detection accuracy: 1%fs;
Rotation angle control accuracy: ± 1°
Switching frequency: 3~10 times/ minute
