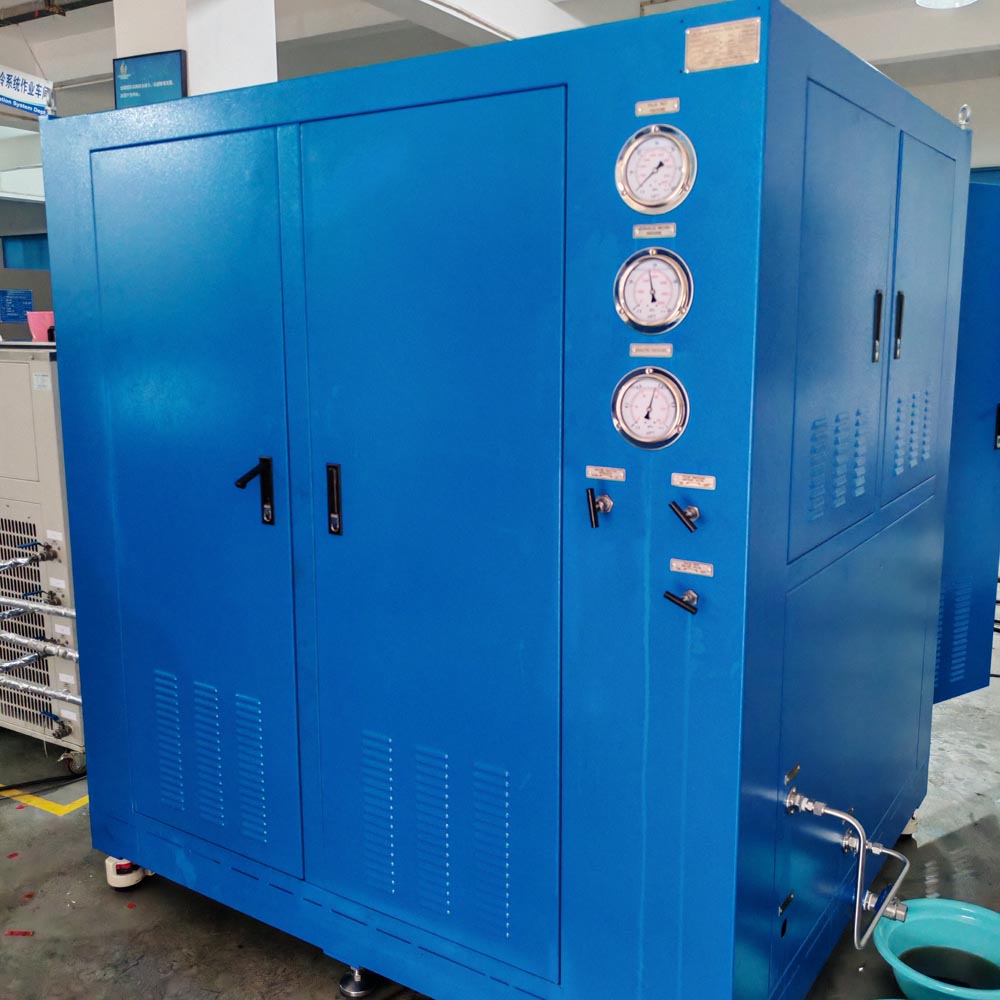

Valve Low Temperature Test Device

Valve Low Temperature Test Device

Valve Low Temperature Test Device is applied for testing the low-temperature performance of various low-temperature valves at low temperatures. The lowest test temperature can reach -196°C.

Standard:

"JBT 12003 Valve Low Temperature Test Device Specifications" etc.

Technical Parameters:

Test medium: nitrogen, ammonia:

Test pressure: 0~100MPa

Test temperature: up to -196°C;

Test scope: cryogenic gate valves, globe valves, check valves , ball valves, butterfly valves, safety valves, etc .;

Equipment composition:

Low temperature system (low temperature storage tank, low temperature test tank, immersion cooling/spray cooling) + pressure pipeline system + measurement and control system, etc.

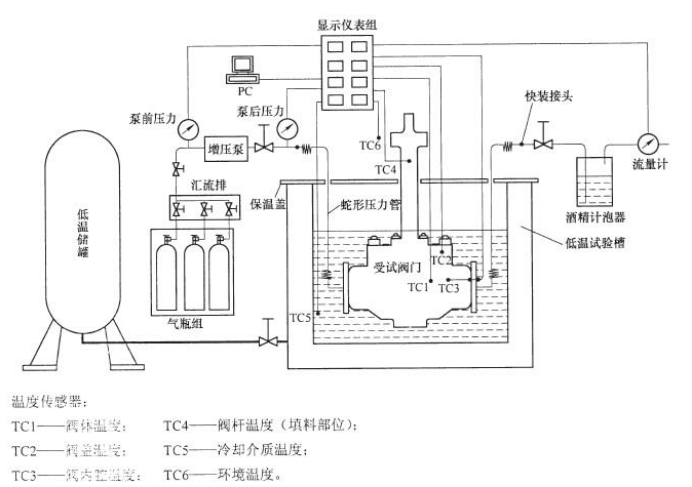

Diagram:
