Safety Valve Test System

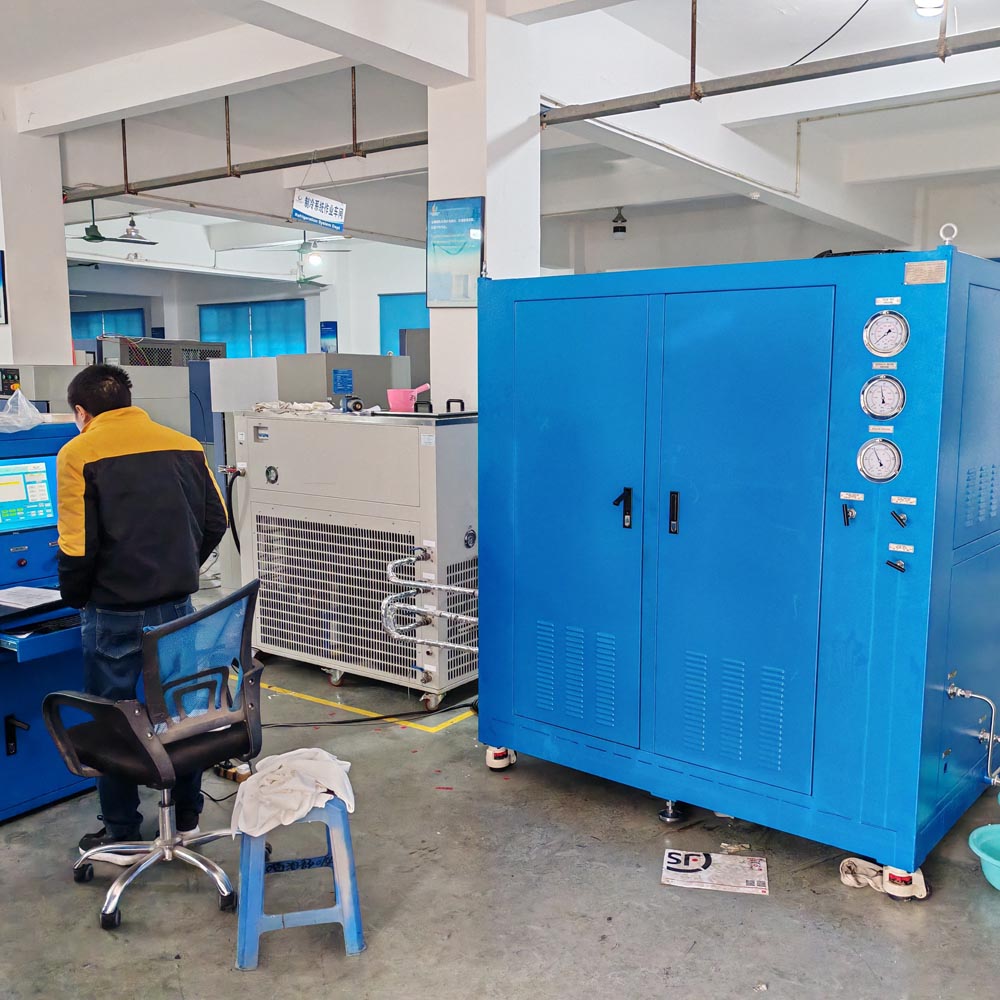

Safety Valve Calibration Bench
The safety valve calibration bench is applied for performance testing of the set pressure, backseat pressure and sealing performance of direct-load and pilot-operated safety valves. It can also perform sealing performance testing of safety valves. It can be quickly clamped by manual three-jaw or hydraulic three-jaw chuck, and can clamp up to 10" valves.
The safety valve calibration bench is a device that simulates the working environment of the safety valve offline and increases the internal pressure until the safety valve jumps. At the same time, the safety valve's safety valve jump pressure can be displayed through the pressure gauge on the device. It can verify the safety valve tripping pressure (also called opening pressure, setting pressure) and sealing test pressure.
Standard:
GB/T 12241 General requirements for safety valves;
GB/T 12242 Specification for performance testing of pressure relief devices;
GB/T 12243 Spring direct load safety valve
GB/T 32291 Offline verification and evaluation of high-pressure and ultra-high-pressure safety valves
TSG ZFO01 safety technical supervision regulations for safety valves;
Other standards.
Technical Parameters:
Pressure range: 0~70MPa; (can be higher, currently up to 500MPa)
Test medium: nitrogen, air or water; (please consult for special media)
Medium temperature: normal temperature; (please consult for special temperature requirements)
Test station: 1; (can be expanded)
Applicable door diameter: DN10~DN600
Clamping method: manual, three-jaw clamping;
Clamping force: 0~50T; (optional according to pressure and diameter)
Valve type: flange or threaded
Pressure measurement accuracy: 0.4 level pressure gauge (multi-interface), 0.5%FS sensor (optional higher accuracy 0.1%FS)
Timing range 0~999h;(optional)
Driving air: 0.5MPa ≤ P ≤ 0.8MPa:
Compressed air quality requirements: filtration accuracy: 15 μm , normal pressure dew point: 3C, oil content (PPM): ≤ 5.0;
Power supply voltage: AC380V 50Hz;
Overall dimensions: 1550x1120x1650 (host), 860x860x700 (clamp).
Features:
The high-precision pressure regulating valve regulates the output pressure, and the test process is manually controlled through the button switch on the control cabinet ;
Automatic hydraulic clamping system, the workbench adopts the form of three claws, the output force is stable and evenly distributed, the square valve can be quickly installed and positioned, the clamping pressure source uses a booster pump imported from the United States, the pressure head can automatically compensate for pressure, ensuring pressure testing Stabilize the pressure of the process system and prevent the safety valve from loosening ;
All high-pressure valves, pipe fittings and joints are made of 316 material imported from the United States. The system adopts weldless connections and cone seals, which are suitable for the sealing requirements of most hydraulic systems, ensuring pressure resistance levels, safety and reliability;
Using high-quality pneumatic wave body booster pumps and pneumatic gas booster pumps imported from the United States SC, using pneumatic boosting technology, the pressure is stabilized and maintained smoothly without fluctuations, and the output pressure is adjustable ;
As well as imported high-quality pneumatic components from Parker and SMC, ultra-high-pressure valves, pipe fittings, and joints use high-quality HIP products imported from the United States ;
Use pressure gauges above level 0.4 and provide pressure gauge distribution of different ranges to improve detection accuracy;
The automatic pressure acquisition system is used to detect the opening pressure and has overpressure, timeout and leakage monitoring functions, which can automatically alarm and terminate the test ;
Automatic collection and monitoring system functions. (optional)
