Compression Fitting Pull-off Tester

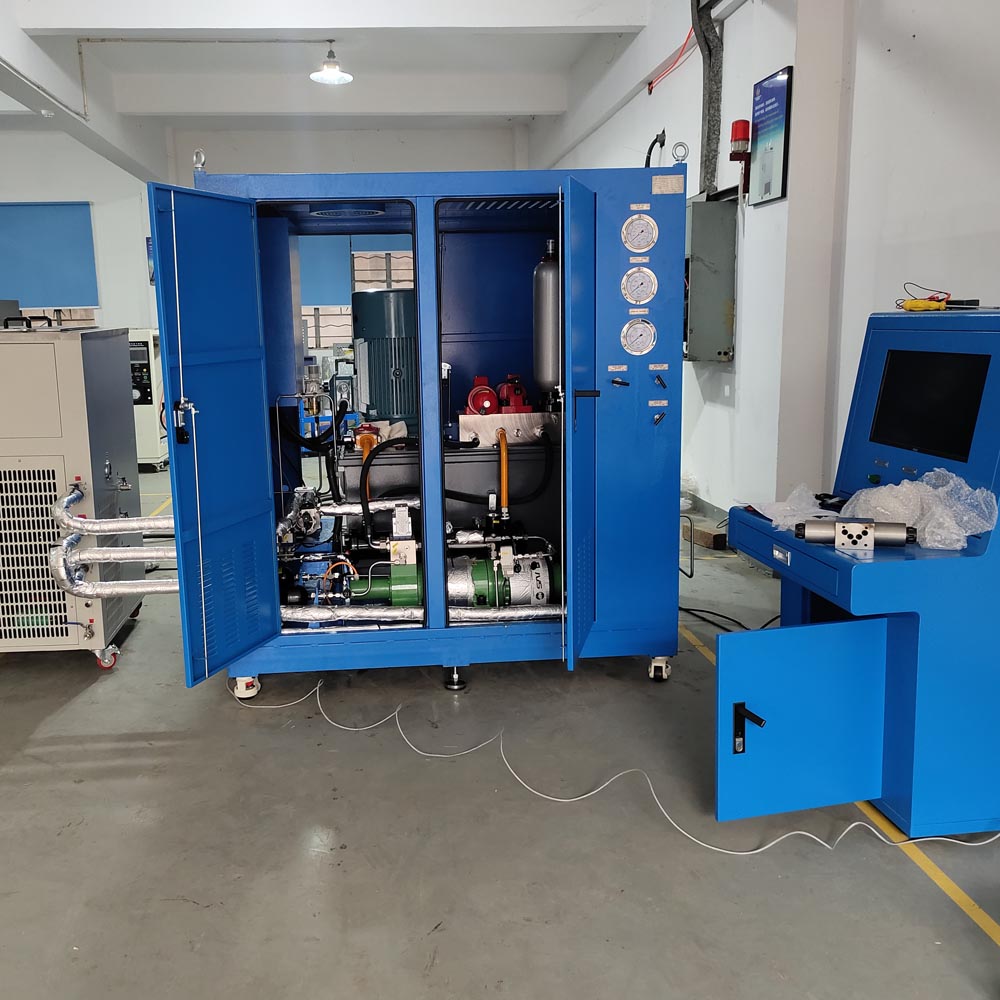

Compression Fitting Pull-off Tester



The joint pull-off testing machine is suitable for the pull-off force mechanical performance test of quick joints and ferrule joints.

Main technical parameters:

1.Test medium: water or hydraulic oil;

2.Medium temperature: normal temperature;

3.Ambient temperature: room temperature;

4.Test pressure: 70MPa;

5.Test station: 1;

6.Test piece joint specification: M22*1.5 (metric external thread 24° internal cone heavy series);

7.Test pressure measurement range and accuracy: 0~100MPa, 0.5 level pressure sensor;

8.Tensile force: 80KN;

9.Tension sensor measurement range and accuracy: 0~100KN, 0.02 level;
