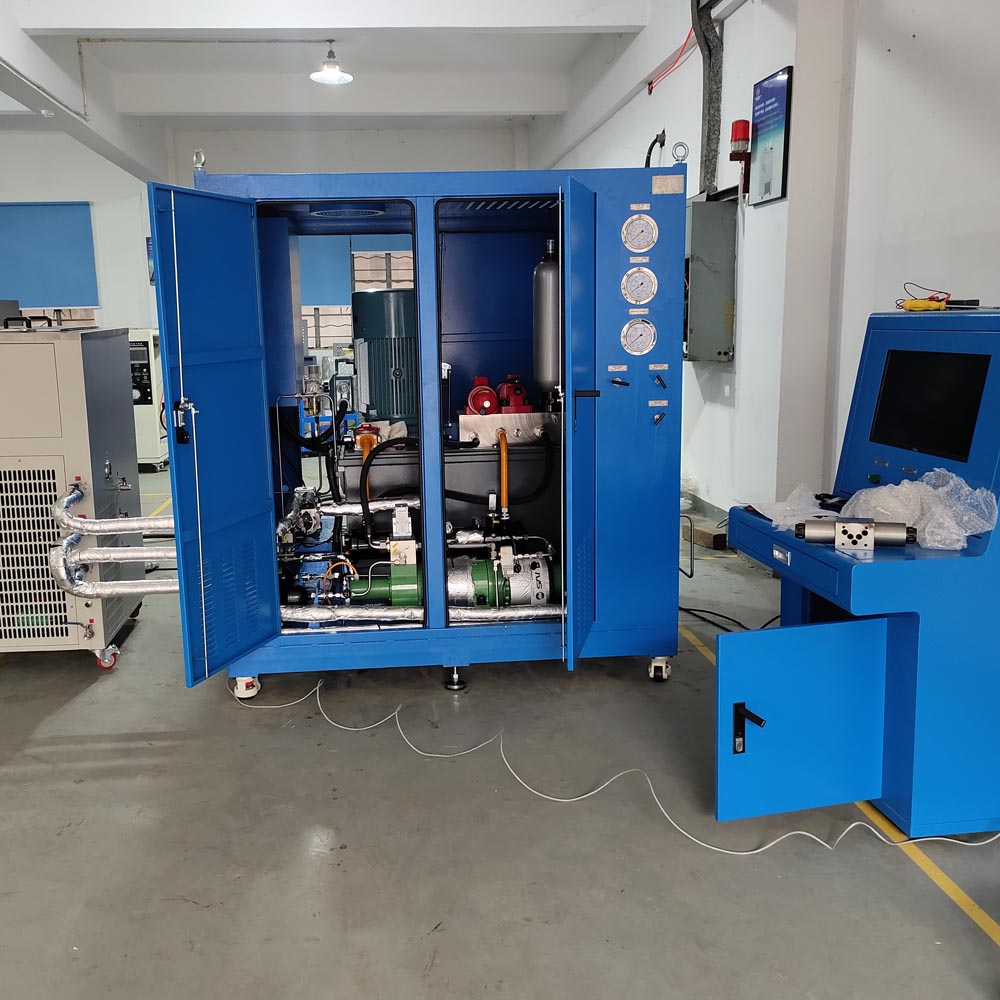

Compression Fitting Fire Resistant Burning Tester
The joint fire resistance test bench is mainly used to test the sealing performance and pressure bearing capacity of pipe joints at high temperature (when burning) and after cooling. It provides real, reliable and prepared test data for valve and pipe joint manufacturers, quality inspection units and scientific research institutes, and provides a strong test basis for improving and enhancing valve sealing performance and pressure resistance.
Main technical parameters:
1.Temperature range: 600~900℃;
2.Pressure range: 0~1.0MPa;
3.Pressurized medium: water;
4.Flow rate: 0~40L/min;
5.Workstation: 1 workstation;
6.Temperature sensor: 0.5 level;
7.Pressure sensor: 0.5 level:
8.The experimental inlet temperature is 80℃, and the outlet temperature is ≤85℃;
9.Test piece joint specification: M22*1.5 (metric external thread 24° internal cone heavy series)
10.Test chamber volume: about 600*600*600mm (subject to final design);
