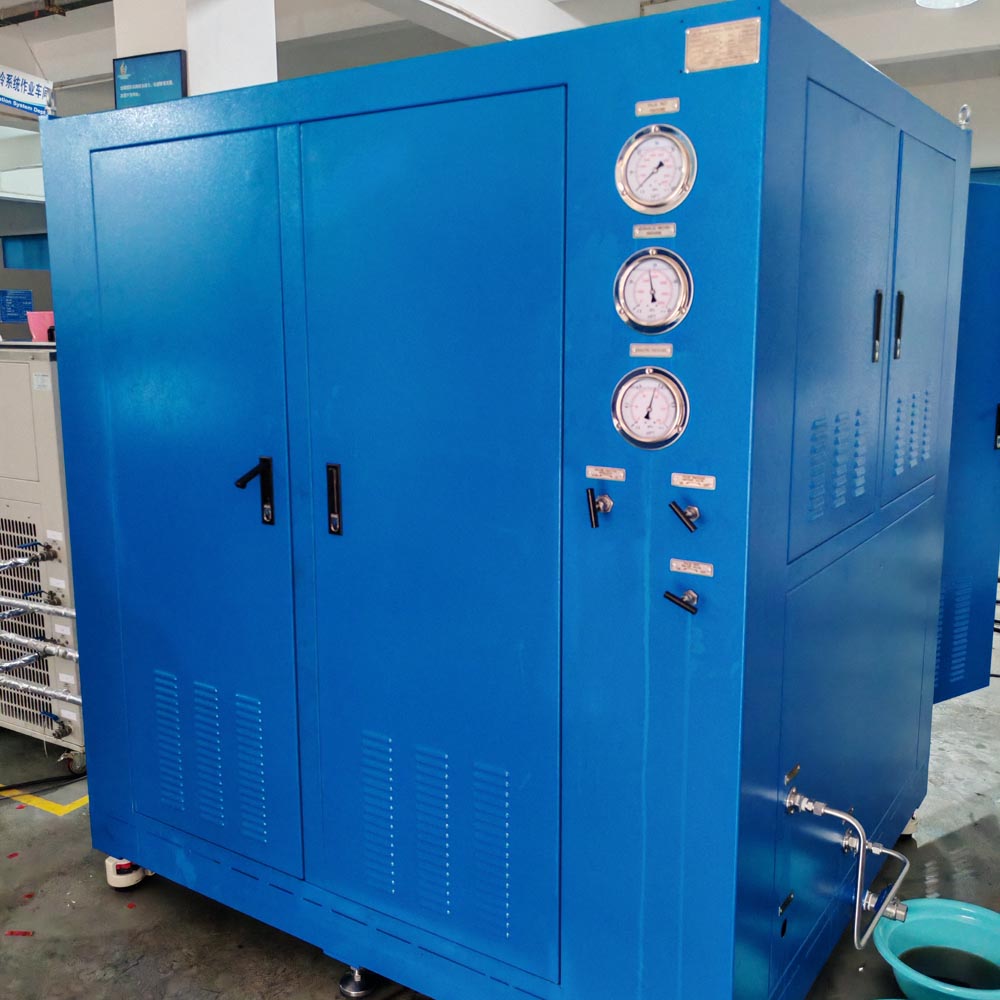

Compression Fitting Burst Tester
The components of the joint pressure burst test bench are designed in a modular manner. The pump and valve system is isolated from the control system. The pipeline installation follows the horizontal and vertical principles, which is reasonable and reliable. The equipment is suitable for burst functional tests of various types of pipe joints.
Technical parameters:
1.Test medium: HM32# hydraulic oil or water; (select base-)
2.Medium temperature: normal temperature;
3.Ambient temperature: room temperature;
4.Output pressure: 0~300MPa: (working pressure ≤250MPa)
5.Test station: 1;
6.Pressure sensor: 0~350MPa, 0.5 level;
7.Pressure gauge: 0~350MPa, 1.6 level;
8.Connector connection: M22*1.5 (metric external thread 24° internal cone heavy series);
9.Cabinet (including test box) reference size: length 1500*width 600*height 1200mm
10.Reference volume of test box: length 800mm*width 600*height 600mm;
11.Total length of test piece: ≤500mm.
