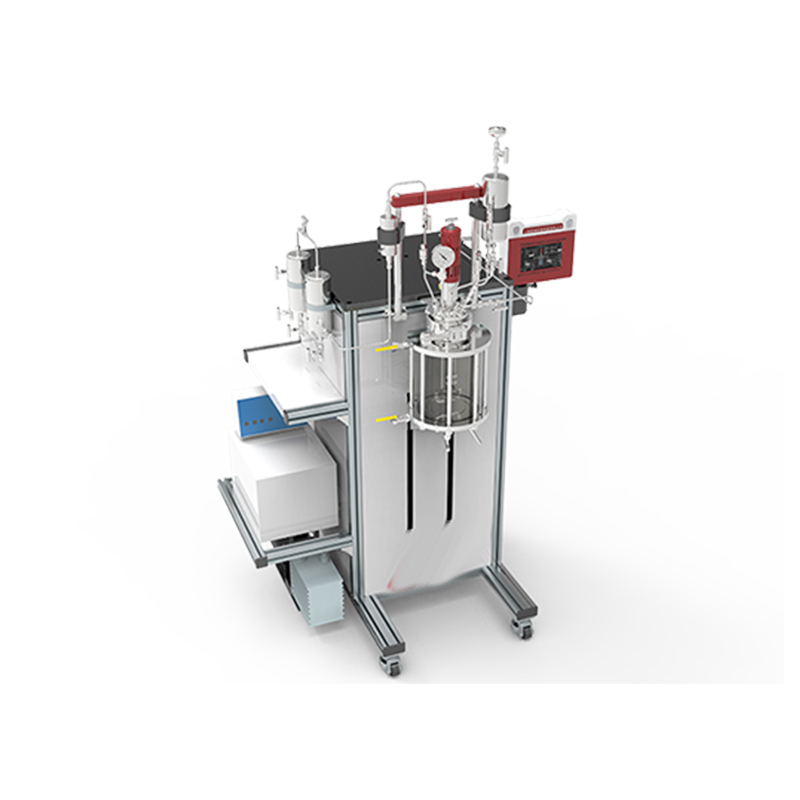

Under constant temperature conditions, the sealed glass reactor can carry out stirring reactions under normal pressure or negative pressure according to the requirements, and can carry out reflux and distillation of the reaction solution. It is ideal for modern fine chemicals, biopharmaceuticals and new material synthesis. Ideal pilot and production equipment. The product can also be used with circulating water vacuum pumps, high temperature circulating oil baths, low temperature coolant circulating pumps, high and low temperature integrated machines, etc. to form system devices.
1. Introduction to the main functions of single-layer glass reactor
The single-layer glass reactor is designed with a single layer of glass. The reaction solvent is placed in the inner layer for stirring reactions, and the interlayer can be connected to different cold and heat sources (refrigeration liquid, hot water or hot oil) for high-temperature reactions (configured with corresponding circulating oil Bath pot, the highest temperature can reach 250°C) or low-temperature reaction (equipped with a corresponding low-temperature refrigerant circulation system, the lowest temperature can reach -80°C), you can also choose a heating and cooling integrated cycle machine; under set constant temperature conditions, in a closed In the glass reactor, stirring reaction can be carried out under normal pressure or negative pressure according to the requirements, and the reaction solution can be refluxed and distilled. During use, it can be evacuated to perform vacuum reaction. It is an ideal pilot plant and production equipment for modern fine chemicals, biopharmaceuticals and new material synthesis. Its unique design makes the test safer and more convenient.
2. Product features of single-layer glass reactor
1. Frequency control, reduction motor, constant speed, no brushes, no sparks, safe and stable, and can work continuously.
2. The entire set of glass is produced from high borosilicate glass GG17 3.3, which has good chemical and physical properties.
3. Integral stainless steel column movable frame structure, six-port reactor lid. The large mouth design is easy to clean, and the standard port socket can optionally be assembled with distillation synthesis devices such as reflux, liquid addition, and temperature measurement.
4. Stainless steel wrapped polytetrafluoroethylene stirring paddle, suitable for stirring and mixing low to high viscosity liquids.
5. The lower discharge port has a flange port and a PTFE valve. There are no dead corners in the container. The removable lower discharge port facilitates the complete and quick discharging of solid materials.
6. PTFE component seal, flange mixing port, high-precision sealing maintained in working condition.
7. Pt100 sensor probe, with high temperature measurement accuracy and small error.
