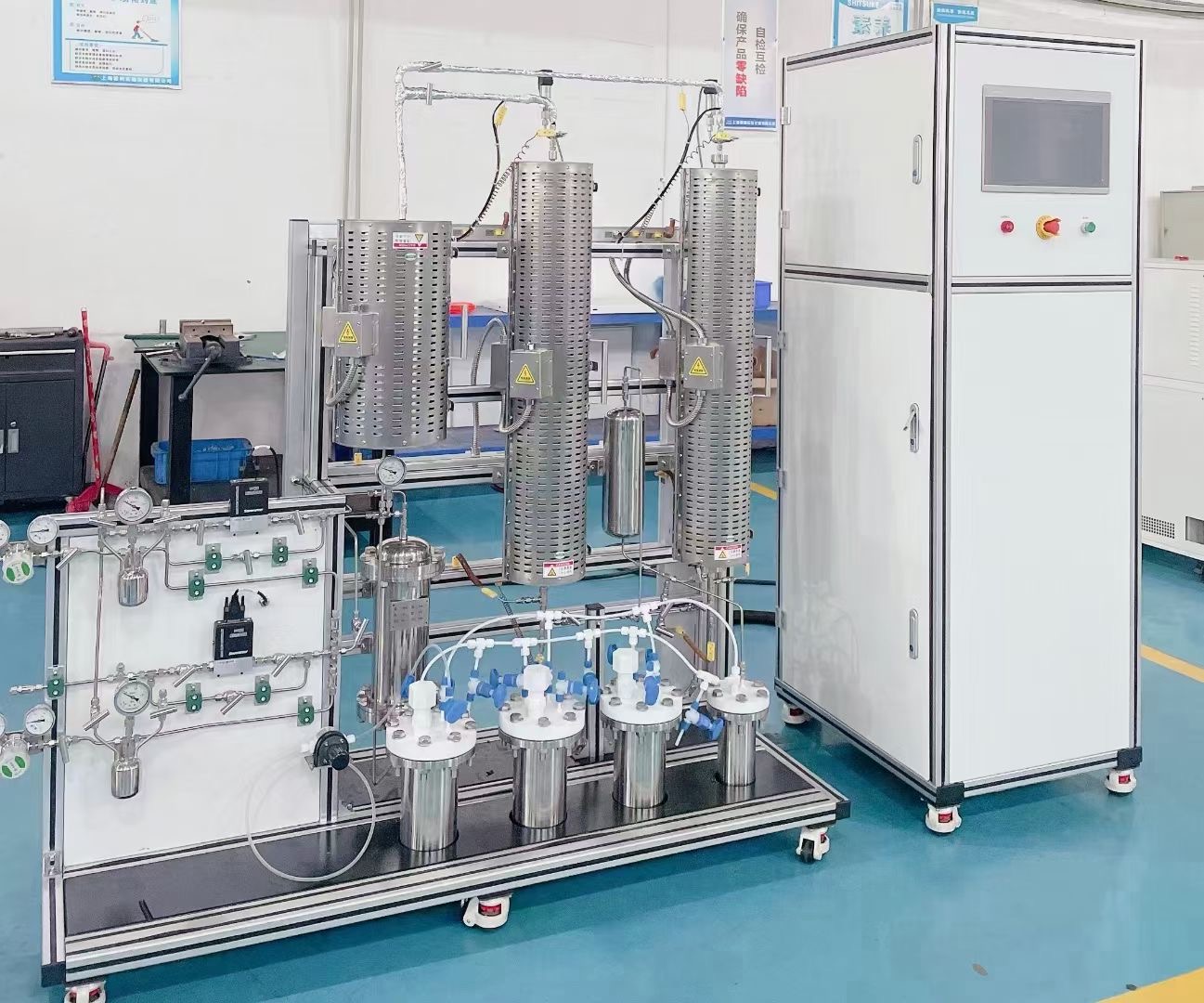

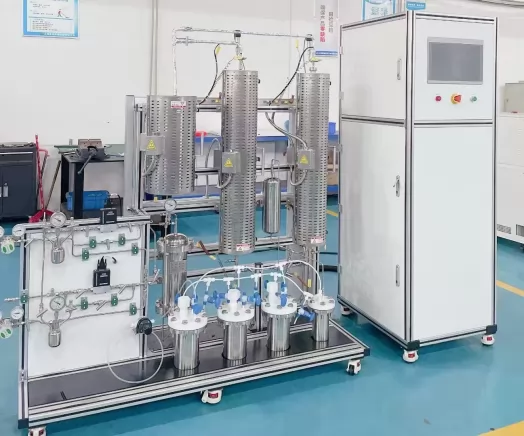

Supercritical Fluid Extractor

When a natural product is extracted by a supercritical extraction method, carbon dioxide (CO2) is generally used as an extractant. Because the critical temperature of CO2 (31 ° C) is close to room temperature, less damage to volatile or physiologically active substances. At the same time, CO2 is safe and non-toxic, extraction and separation can be completed at one time, no residue, suitable for food and drug extraction. So usually applied to the food industry, the pharmaceutical industry, the cosmetics industry...etc

Inquire Now Next Product

Feature

1. Metal tank: Can resist high temperature/pressure, acid and alkali.

2. The supercritical fluid extractor can be reacted by means of selective extraction under supercritical fyid

3. Customized desian according to requirements.

4. Software remote control system for remote monitoring of reaction processes

Technical Parameters

Reactor Capacity	50ml ~ 50Liter
Temp. Range	-35 ~ 350℃
Pressure Range (Depending on the Vessel)	Vacuum ~ 413 bar
Control Panel	Regular
Heating	Electric heater, Jacket type
Control Type	Manual operation or fully automatic computer control
Structure	Bench / Floor
Material	304SS, 316SS, Hastelloy C-276, Inconel, Titanium, Quartz…etc
Closure Type	Pin type, Air cylinder (Automation), Bolt type
Components	Condenser, Separator, Receiver tank, Chiller, etc.
