Heating Methods: electric heating, oil bath heating, gas heating, water heating (or cooling), open flame heating, etc.
Jacket Types: jacket type and outer half-pipe type. The jacket oil heating type is equipped with a flow guide device.
Mixing Methods: paddle type, anchor type, frame type, ribbon type, wall scraping type, etc. High-speed types include dispersing impeller type, turbine type, high shear type, and propeller type. Customers can choose according to different process requirements.
Stirring transmission form: ordinary motor, explosion-proof motor, electromagnetic speed regulating motor, frequency converter, etc. can be selected. The reducer includes cycloid pinwheel type, worm gear type, and planetary transmission type.
The main types of shaft seals include: ordinary water-cooled packing seals, combined PTFE packing seals, and mechanical seals.
Discharging form: ball valve, lower expansion valve.
Stainless steel reactors are widely used in the production of chemicals, food, coatings, hot melt adhesives, silica gel, paints, medicine and other industries. They are used to realize evaporation, synthesis, polymerization, saponification, sulfonation, chlorination, nitration and other chemicals. An important pressure vessel for the reaction process.
The inner tank of the reactor can be made of different steel materials such as stainless steel SUS304, SUS316L, SUS321 according to actual process requirements. The inner surface is mirror polished, and online CIP cleaning and SIP sterilization can be realized to meet the requirements of hygienic regulations.
With a jacket, the material of the jacket can be stainless steel (SUS304) or carbon steel (Q235-B) according to process requirements.
The diameter-to-height ratio is reasonably designed, the stirring device is selected as needed, and a pressure-resistant sanitary mechanical seal device is used to seal the stirring shaft seal to ensure the working pressure in the kettle and prevent material leakage in the kettle.
The support type can be selected as hanging ear type or floor-standing leg type or other customized structures according to actual operation requirements.

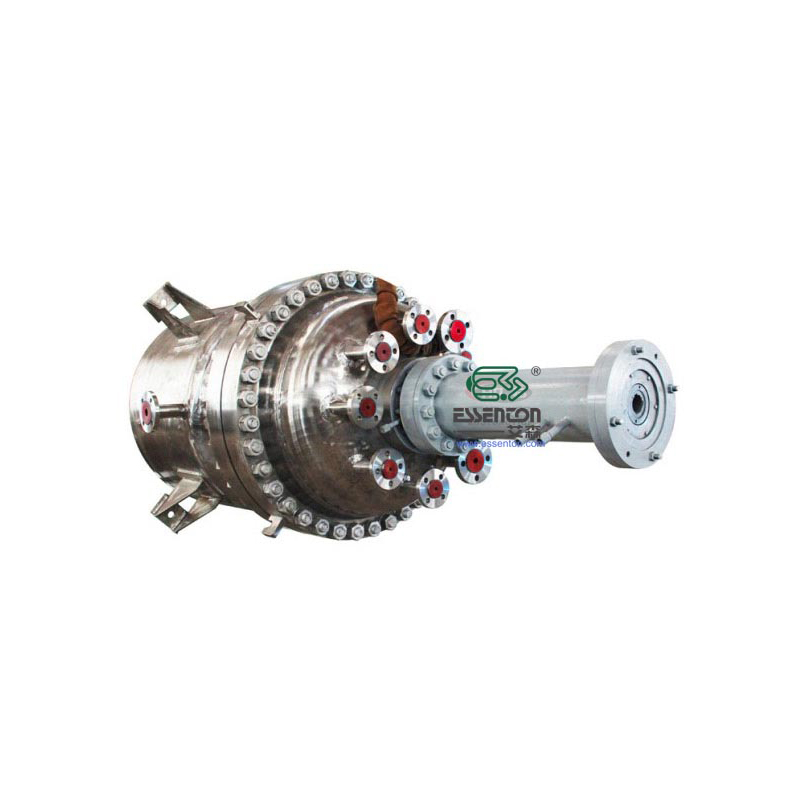

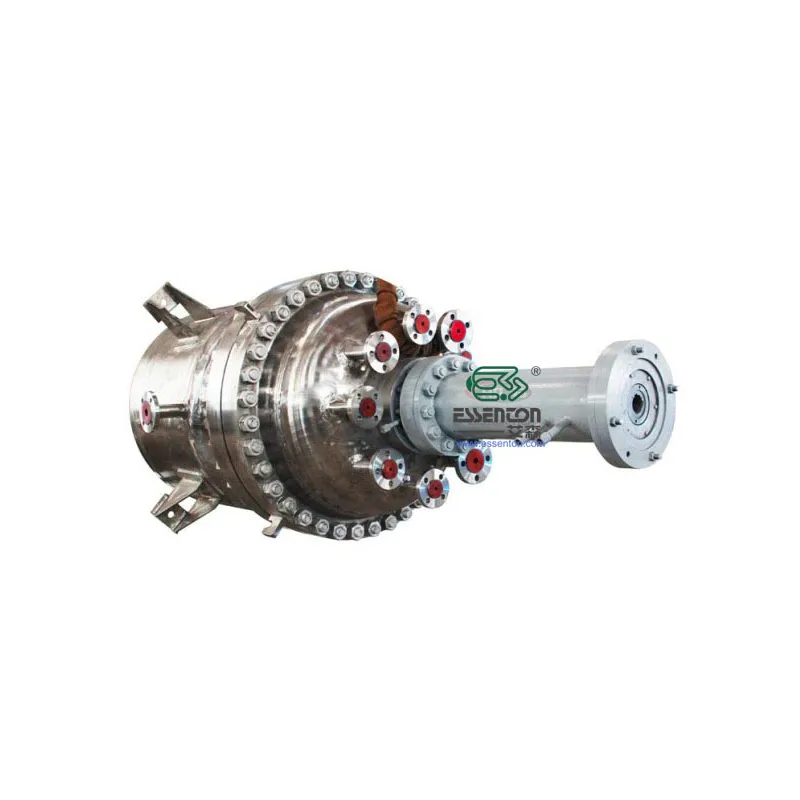

The main structure of the stainless steel reactor: open flat cover reactor.
The open flat cover structure mainly includes two types: flat cover end flange type and flat cover reverse flange type. Their designs are basically the same, but the flat cover reverse flange type is less expensive than the flat cover end flange type.
The reactor of this structure is mainly suitable for some chemical products that require higher pressure (5.0-35MPa) during the production process without much restriction on temperature, when the volume is small (below 1000L).
The open structure is convenient for maintenance and disassembly. For highly toxic and flammable chemical products, the use of reactors with this structure can improve the working environment of operators and reduce labor intensity.
