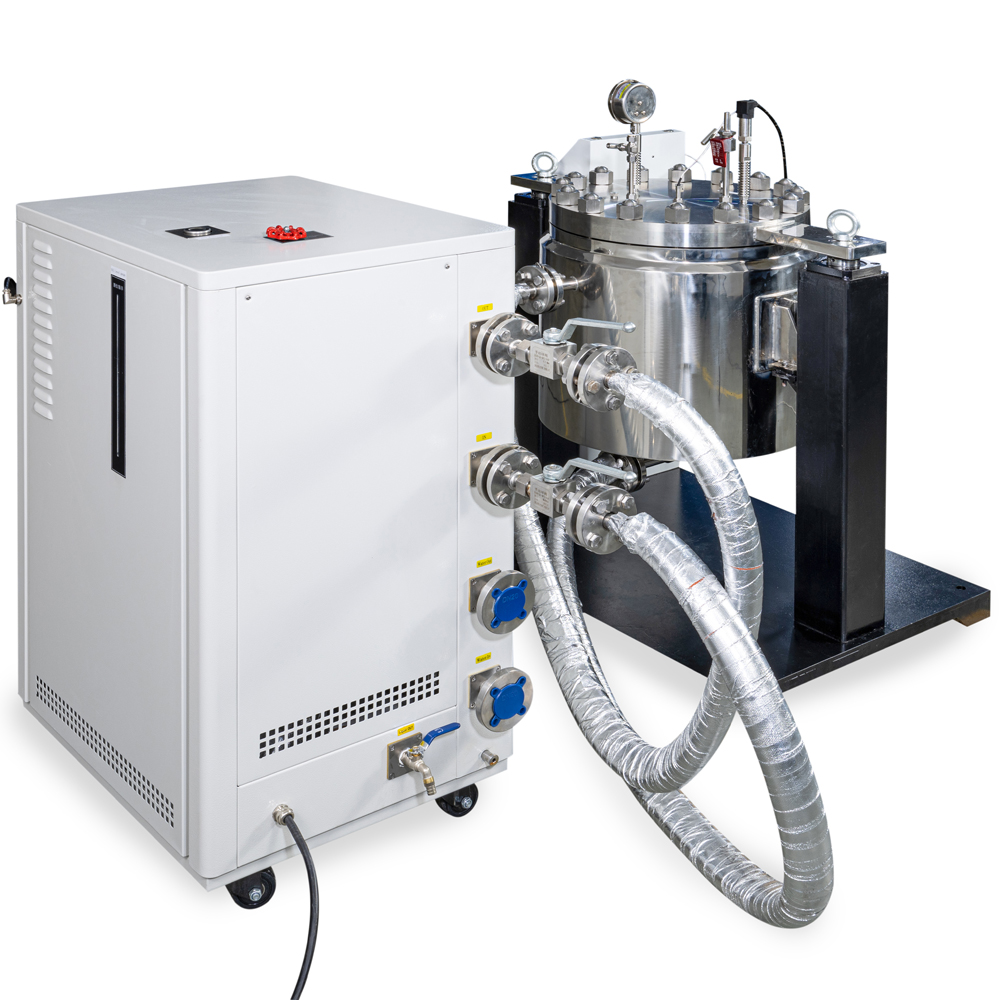

Simulated Water Depth Test System
The simulated water depth test system is also called a deep sea water pressure simulation test machine. The equipment is equipped with a pressure chamber, which can be customized according to requirements. It can achieve 1 meter precision water depth control, can be connected to external cables, measure stress and strain, test electrical performance, etc.
Technical Parameters:
Test medium: fresh water or sea water;
Working pressure: 0.1~200MPa;
High pressure pump flow rate: 3L/min, variable frequency flow rate adjustment:
Simulation pressure chamber size: customized according to actual needs
Control mode: manual/automatic;
Pre-pressing pressure (without parts): 1~2MPa, adjustable;
2MPa~200MPa Pressurization speed (without parts): 2~8MPa/min, the pressure increase
speed can be set for proportional pressure increase, and the maximum pressure can be set.
Small unit 1MPa;
200MPa~20MPa Pressure relief speed (without parts): 5~20MPa/min, the pressure relief
speed can be set for proportional pressure relief.The minimum unit is 1MPa ;
20MPa~2MPa Pressure relief speed (without parts): 2~10MPa/min, the pressure relief speed
can be set for proportional pressure relief, setting The minimum unit is 1MPa;
Holding pressure value control accuracy: ±2MPa.
Above: Simulated water depth test system, the pressure chamber adopts horizontal structure design, diameter 900mm, length 4 meters, 6000 meters water depth simulation, automatic opening and closing, control accuracy is 1m
