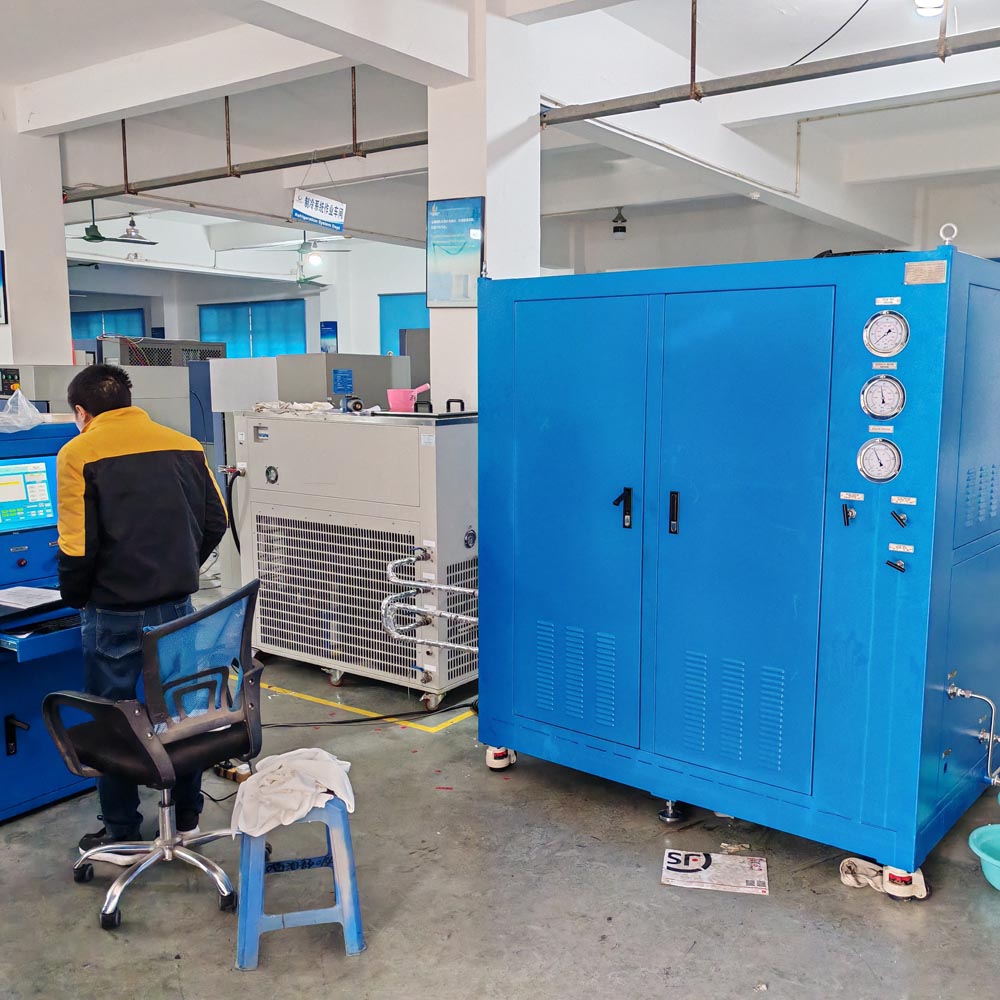

FIVA Valve Performance Test Bench

FIVA Valve Performance Test Bench

FIVA valve performance test bench equipment is used for performance testing of FIVA valves, marine valves, etc., simulating FIVA movement, extreme max position, fail safe mode, testing. FIVA valves, marine valve internal leakage testing, signal-flow testing, valve position signal testing, position sensor calibration, etc.

Technical Parameters:

Medium: L-HM46 or other hydraulic oil;

System rated flow: 70L/min, proportional regulation;

Test pressure: 0.7~30MPa, proportional adjustment ;

Cooling circulation oil source: 60L/min, 1.SkW:

Oil temperature: 42+1℃;

Fuel tank capacity: 300L, stainless steel ;

Oil cooling power: 21kW;

System oil cleanliness: NAS7 level ;

Proportional control current: 4-20mA;

DC voltage: 0~24VDC ;

System cabinet size: subject to actual design and production.

Test items: FIVA valve, marine valve internal leakage test, signal-flow test, valve position signal

test, position sensor calibration, etc.

Test data processing system functions:

a) Real-time acquisition of data that meets the test requirements, dynamic display of curve graphs, adjustable curve graph frames, partial enlargement of curves, with cursor capture function:

b) It has functions such as data storage, data query, and test report printing:

c) Output report items can be manually input and selected:

d) With safety protection and alarm prompt function

e) It can generate curves not limited to oil temperature, pressure, input signal, position signal, input signal-flow rate, etc.
