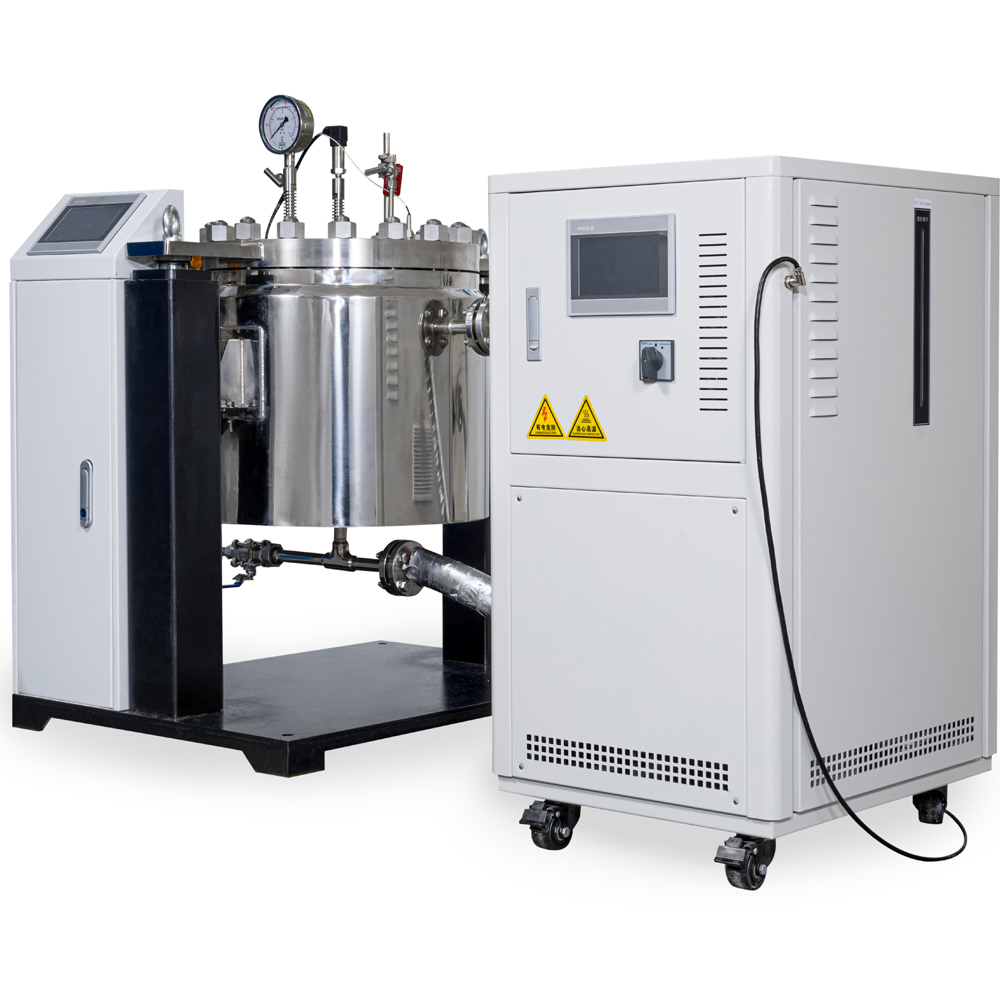

Shale Thermal Simulation Device
This system heats shale to simulate the process of shale producing high-pressure gas at 600°C, then cools it to 150°C and releases the gas into a gas cylinder, thereby studying the shale gas production process and reserve data and providing a feasibility basis for production and development.
Main functions:
1. Automatic control or manual control to complete the test of the specimen, manual and automatic control can be used separately, independent of each other. At the same time, they can automatically collect, display, record and analyze the pressure test data;
2. The flow rate of gas into the gas cylinder can be adjusted by the throttle valve;
3. The system can automatically detect the pressure of high-pressure gas:
4. The system can automatically detect the pressure of each gas cylinder;
5. The computer automatically generates pressure and time curves, displays them in real time, and stores various data, and can print out inspection reports in Chinese and English at any time. At the same time, data recording instruments are installed to record the pressure test conditions in real time;
6. The software has a human-machine interface, test items, pressure, time and other settings. Customized print format, data can be transferred to Microsoft Word, users can modify the print format by themselves
Style, convenient and practical;
7. In the test report, the corresponding pressure and video information of the time axis during the test can be randomly called up to analyze the leakage of the test product;
8. The equipment has overpressure alarm and shutdown function;
9. The equipment has emergency pressure relief and shutdown function.
