Description

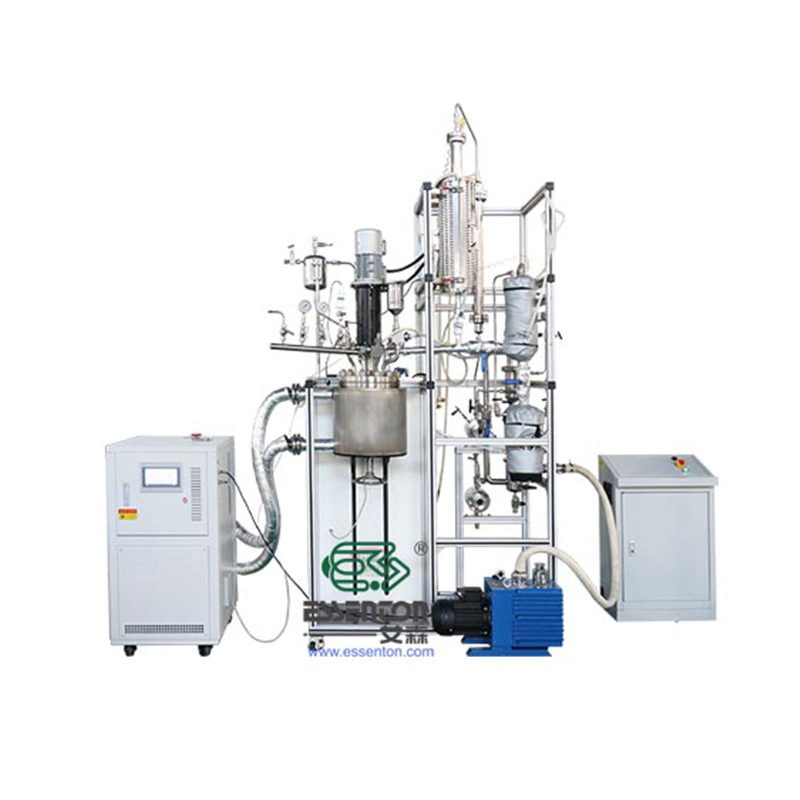

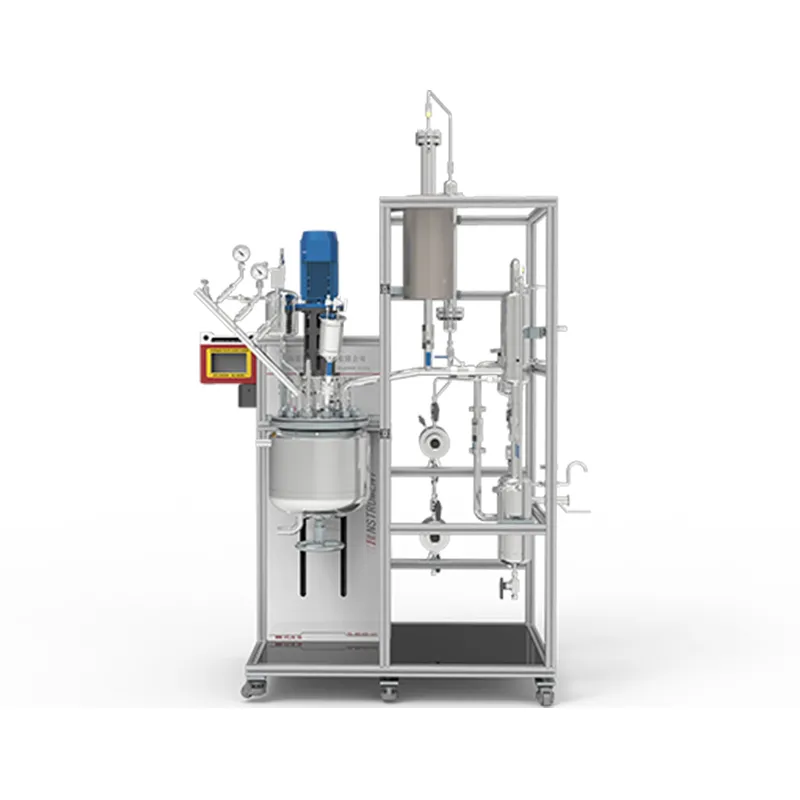

The small-scale polymerization reactor includes nylon/polyester/biodegradable materials/other polymers. It is mainly used in the fields of resin, rubber, plastics and other polymer materials. The esterification reaction is mainly alcohol and carboxylic acid or inorganic oxygen-containing acid at a certain temperature., the reaction to generate ester and water under pressure conditions, from small scale to production level, can cover different polymers and various polymerization conditions, and provide high-end equipment and overall product solutions. I want to inquire

Nylon polyester complete set of reactor

Nylon reactor

The nylon reaction kettle is customized according to customer needs. The kettle body and lid can be automatically lifted and lowered, and equipped with high-temperature discharging functions. Can be equipped with sink, granulator, etc.

Technical Parameters

Describe	Parameter
Equipment selection	Reactor volume (L): Standard optional "0.25, 0.5, 1, 2, 3, 5, 10, 20, 29";
Operating temperature	RT~300℃
Use pressure	≤30bar
Stirring speed	50~300r/min
Operating system	Essenton
Heating form	Electric heating/oil bath
Opening and closing method	flange bolts
Unique advantages	1. Non-standard blade forms such as ribbon and frame can be customized; 2. Online feed measurement
Non-standard customization	The temperature can be customized, and the pressure can be up to 20MPa. The materials can be selected from titanium, Monel, zirconium, Hastelloy, Inconel, etc.; the functions of the kettle body can be customized: 1. Add constant pressure feeding; 2. Condensation Coil, condensation reflux, collection; 3. High and low temperature oil bath, molten salt; 4. Online sampling, filtration; 5. Adding valves and using imported valves, which can integrate high-pressure automatic air inlet and liquid inlet, and integrate the whole set according to the PID process technology reaction system.
Power supply	~90-240V/wide voltage for global use
Working environment	-20℃～70℃, relative humidity between 0% and 95%.
