Complete Pressure Reactor Systems
Ready-to-use system for the laboratory bench
Model No: EPR-200mL to 5000mL
Pressure reactor for kilo labs and small-scale production
Reactor volume: 20 to 500 liter
Pressure: -1 (FV) to +200 bar
Temperature: -20 °C to +300 °C
Material: stainless steel, Hastelloy®

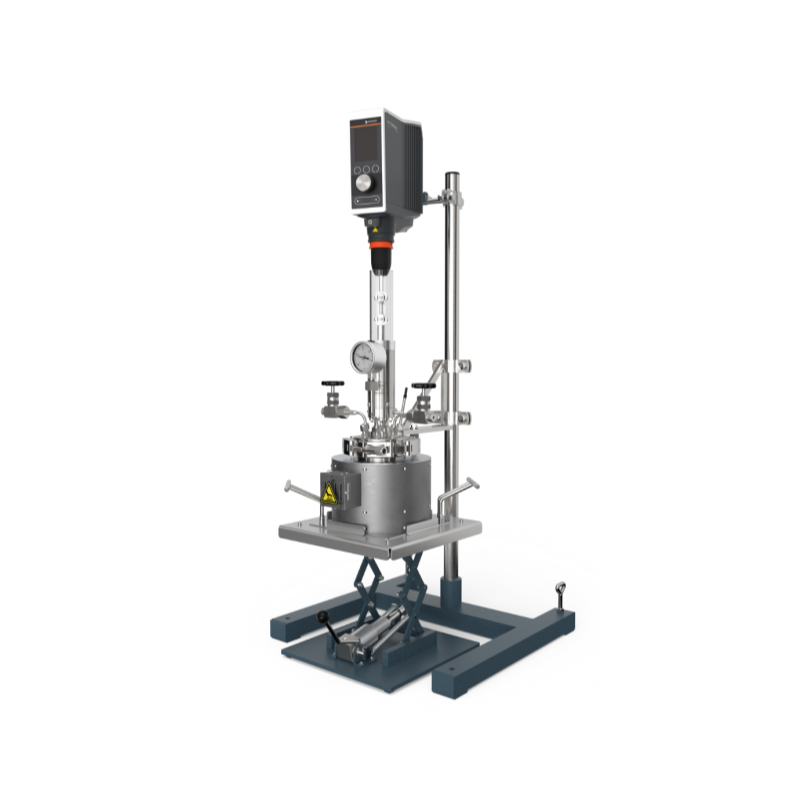

This solution fits into any fume hood: stainless steel or Hastelloy reactor with everything needed for operation: Stirrer drive, heater, vessel stand and lifting device.
Small system, big effect.
Heating, stirring, measuring.
Quick to open
Accelerated cooling
Easy handling
Fits in any fume hood.
Filling, emptying, cleaning
The system is designed to enable comfortable and efficient work.
Heating, stirring, measuring
The lifting device is used to lift the reactor with the heater and close the quick-action lock.
Cool down, remove reactor
The reactor can be easily removed from the heater. This allows fast cooling and intensive cleaning.
Did you know that our systems will be in continuous use for over 100+ years?
You want the modern complete solution?
Reactor + heating + stirrer + rack + measured value recording + visualization + control + freely programmable
100 % certified materials
Our pressure equipment is made exclusively using tested materials with certificate - for your safety
CE - PED 2014/68/EU
Our pressure equipment are made according to the pressure equipment directive.
Certified welding processes
We are regularly recertified to weld stainless steel and nickel-based alloys (hastelloy)
100% made in China
high quality, evnvironmentally and socially responsible
