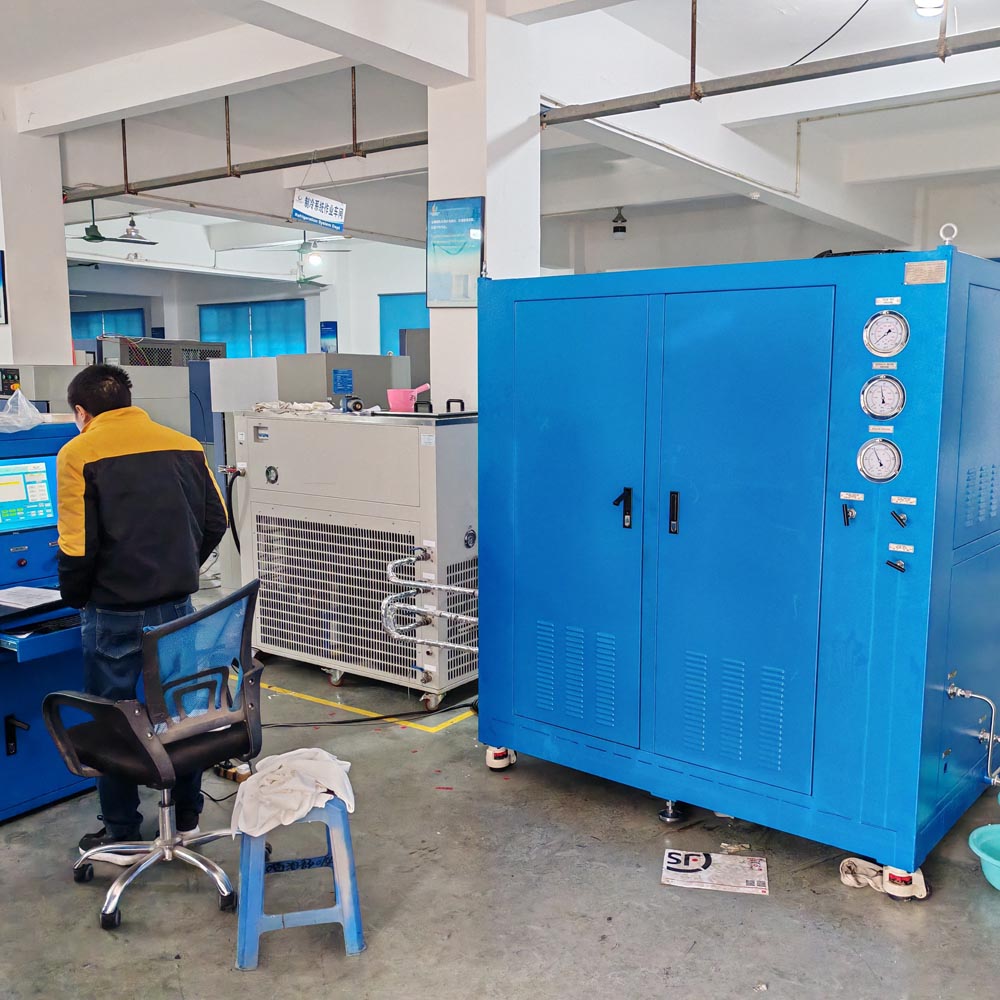

Nuclear Grade Transmitter Vacuum Filling Device
The vacuum filling device for nuclear grade transmitter is mainly used for vacuum filling of nuclear grade transmitter. The device has the function of degassing salt water, and the degassing meets the filling requirements. It realizes the dual pump operation technology, has the function of switching between single pump and double pump, and can select single pump/double pump operation according to the vacuum demand. It has certain automatic operation functions, such as valve control and selection, single pump/double pump switching. The device interface meets the vacuum filling requirements of various transmitters.
With UPS power supply function, the device can continue to perform vacuuming in the event of external power failure.
Technical Parameters:
Pump suction capacity: 4.72L/s (dual pump operation);
Number of vacuum pumps: double pumps;
Ultimate pressure: 0.005mbar;
UPS power supply: 2700W: can run for 1h without power failure
Automatic start-stop
Mode of operation: fully automatic.
