Micro Reactor

The micro reactor is divided into three series according to its structure.

Micro reactors are divided into HT type and Zn type according to different control modes.

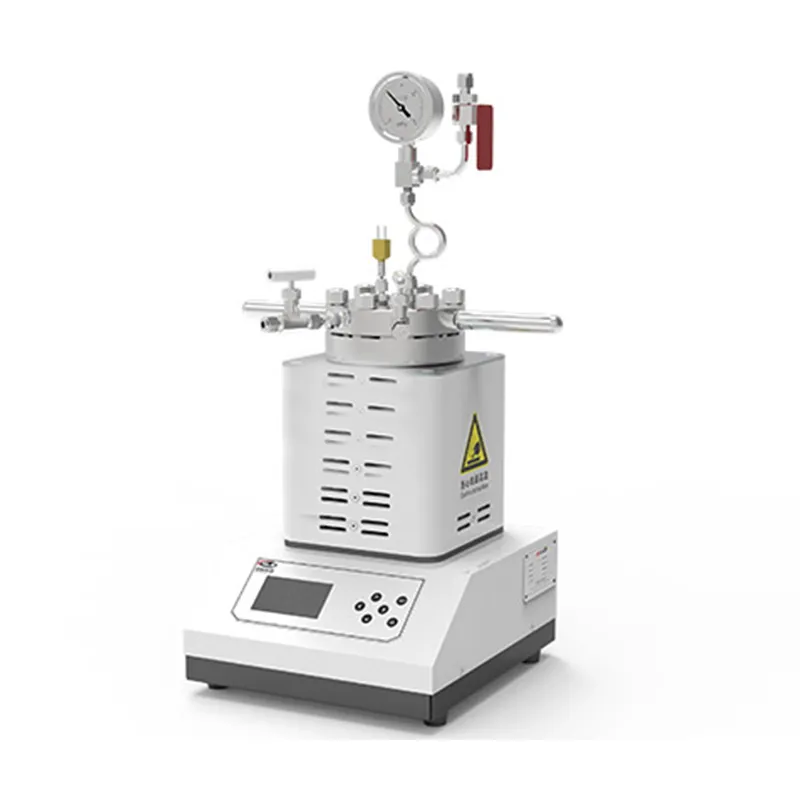

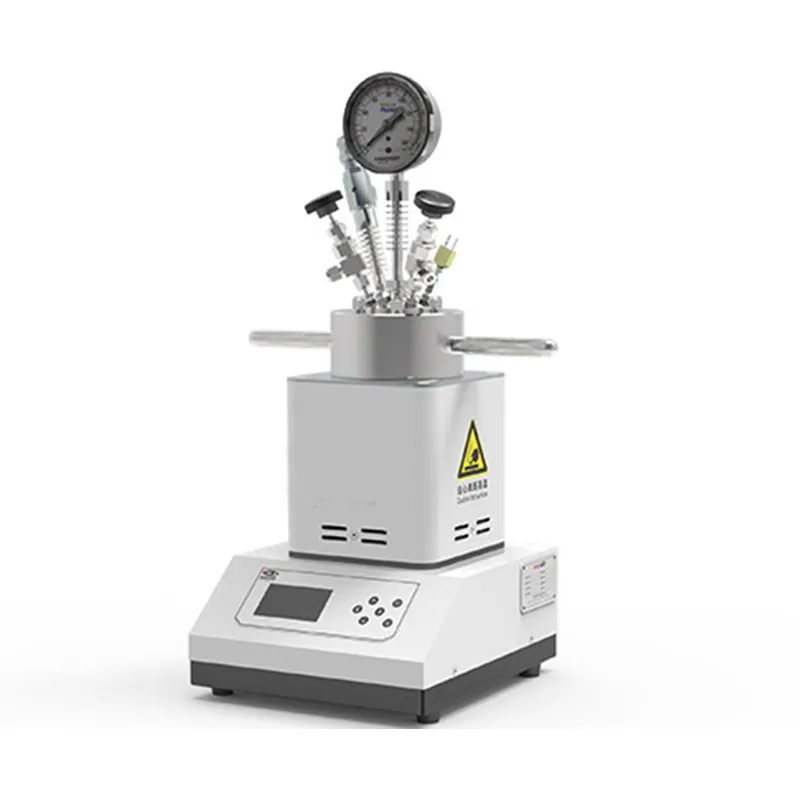

1, The common model named with HT prefix is LCD display and key operation. This model is named with HT prefix

Functional features: Display external temperature, kettle temperature, rotating speed and reaction time; Set the target temperature, upper limit of external temperature, mixing speed, reaction time and alarm temperature difference; Overtemperature automatic power-off protection.

2, Name the smart model with Zn prefix as the touch screen operation

Functional features：It has all the functions of ordinary models. Expand multi-channel communication interface, which can be connected to pressure sensor, gas mass flow controller, feed pump, solenoid valve, etc. All data can be recorded and exported through USB port.

According to different stirring forms, micro reactors can be divided into magnon stirring and mechanical stirring

1, Magneton Stirring

The reactor is placed with high temperature resistant and strong magnetic Teflon agitator, and the external magnet at the bottom of the boiler drives the agitator to be used in the small volume reactor.

2, Mechanical Stirring

The mixing paddle is in direct contact with the material to mix more fully. The sealing form adopts magnetic coupling sealing. Various paddle types are available. It is suitable for high viscosity and large volume reactor.

Model Example

HT-100 F C-T

HT: It represents the ordinary model for key operation, and Zn represents the intelligent model for touch screen operation.

100: Indicates the effective volume of the reactor. The basic models are10, 25, 50, 100, 250, 500, 1000, 2000ml.

F: Represents the three f/ K/ Y Series divided by structure.

C: C indicates magneton stirring, and there are C/ J for selection. J means mechanical mixing.

T: Represents a reactor made of special materials. The standard is stainless steel, and t indicates titanium; C represents Hastelloy; M represents Monel alloy; I is Inconel; Z represents zirconium material.

The configuration components of the standard reactor take ZN-250YJ as an example as follows:

Magnetic coupling stirrer, proportional unloading valve, inlet valve, the air inlet is inserted into the bottom pipe, Seal ring, kettle body, thermocouple, pressure gauge, exhaust valve, kettle cover, quick opening clip, control box & heating furnace
