The application scope is also applicable to the factory inspection of drilling blowout preventers, oil (gas) trees, wellhead equipment, throttling and well-killing manifolds and other products, as well as the water pressure test of aviation valves, hoses, refrigerator shells and fire-fighting equipment.
Standards: GB-3836 and other national standards for explosion-proof/flameproof products.

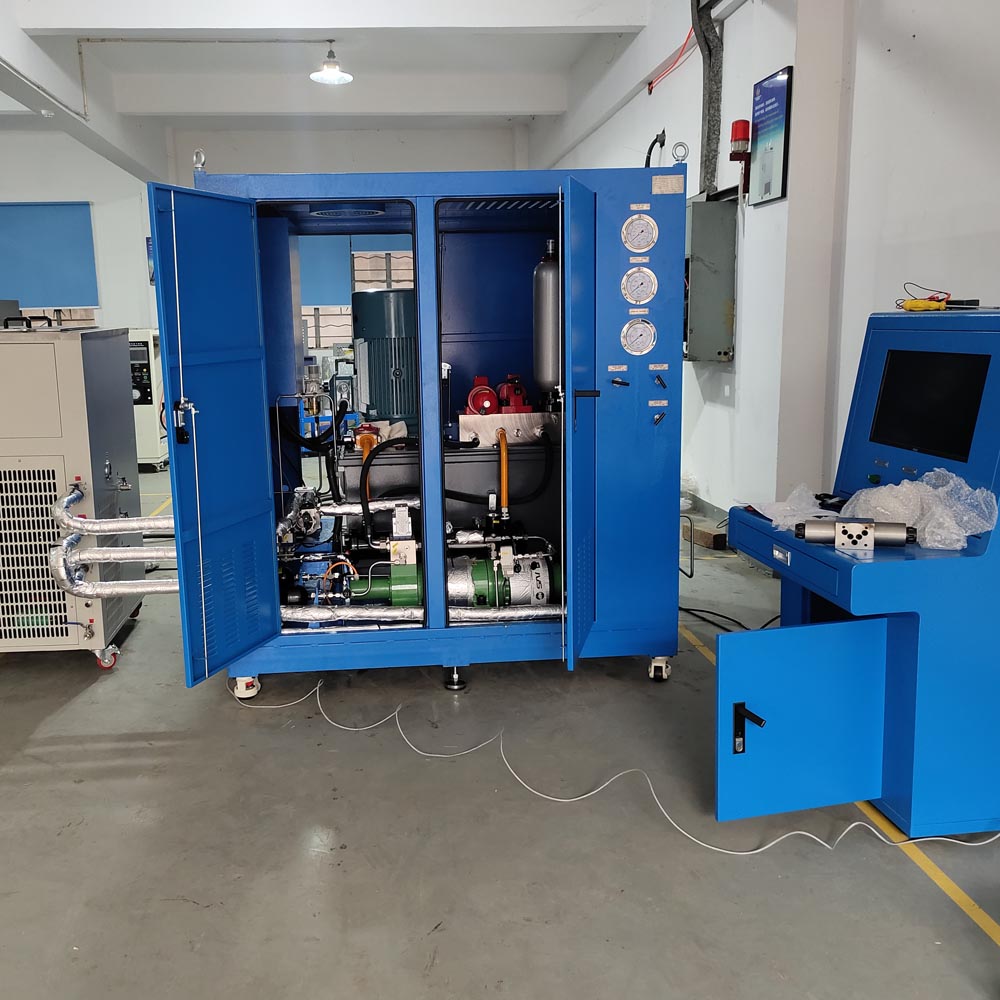

The water pressure test system is a pressure test equipment that uses the American Haskel pneumatic booster pump as the boost source. The maximum test pressure can reach 700MPa. The system output pressure can be adjusted steplessly by adjusting the driving air pressure. The pressure has high accuracy and is computer controlled. The entire experimental process is completed on the computer, and the "pressure-time" curve is automatically generated and the data is automatically stored. The test report can be printed at any time, and the test process can also be manually controlled by a button switch .
Technical Parameters
Maximum pressure: 700MPa
Drive source: 0.5MPa≤P≤1.0MPa
Test medium: water, oil, etc.The test pressure can be adjusted steplessly, and pressure maintenance, unloading, remote control and video monitoring are all fully automatic. After the test, the test report can be automatically printed and archived.
Technical parameters:
| model | Pressure (MPa) | Control method |
| WPT35 | 35 | Automatic/manual control |
| WPT70 | 70 | Automatic/manual control |
| WPT105 | 105 | Automatic/manual control |
| WPT150 | 150 | Automatic/manual control |
| WPT200 | 200 | Automatic/manual control |
| WPT250 | 250 | Automatic/manual control |
| WPT300 | 300 | Automatic/manual control |
| WPT400 | 400 | Automatic/manual control |
| WPT700 | 700 | Automatic/manual control |
