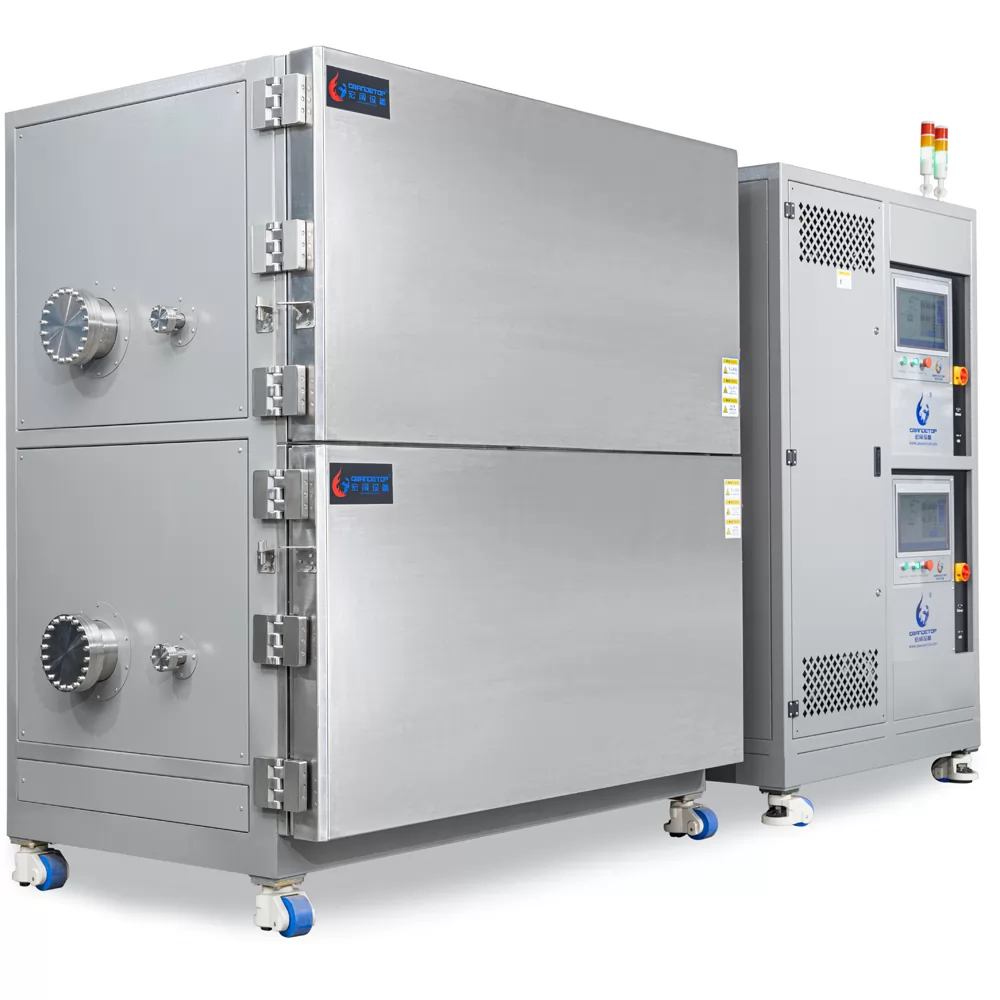

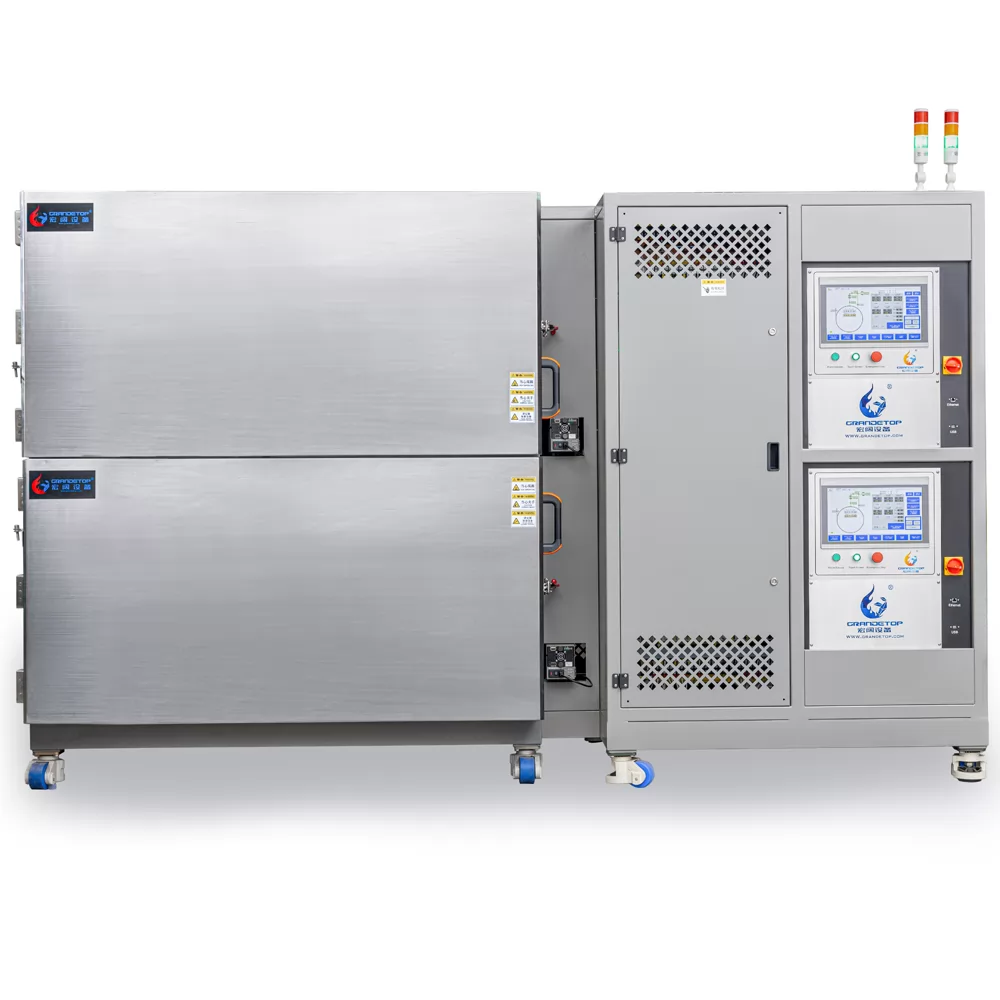

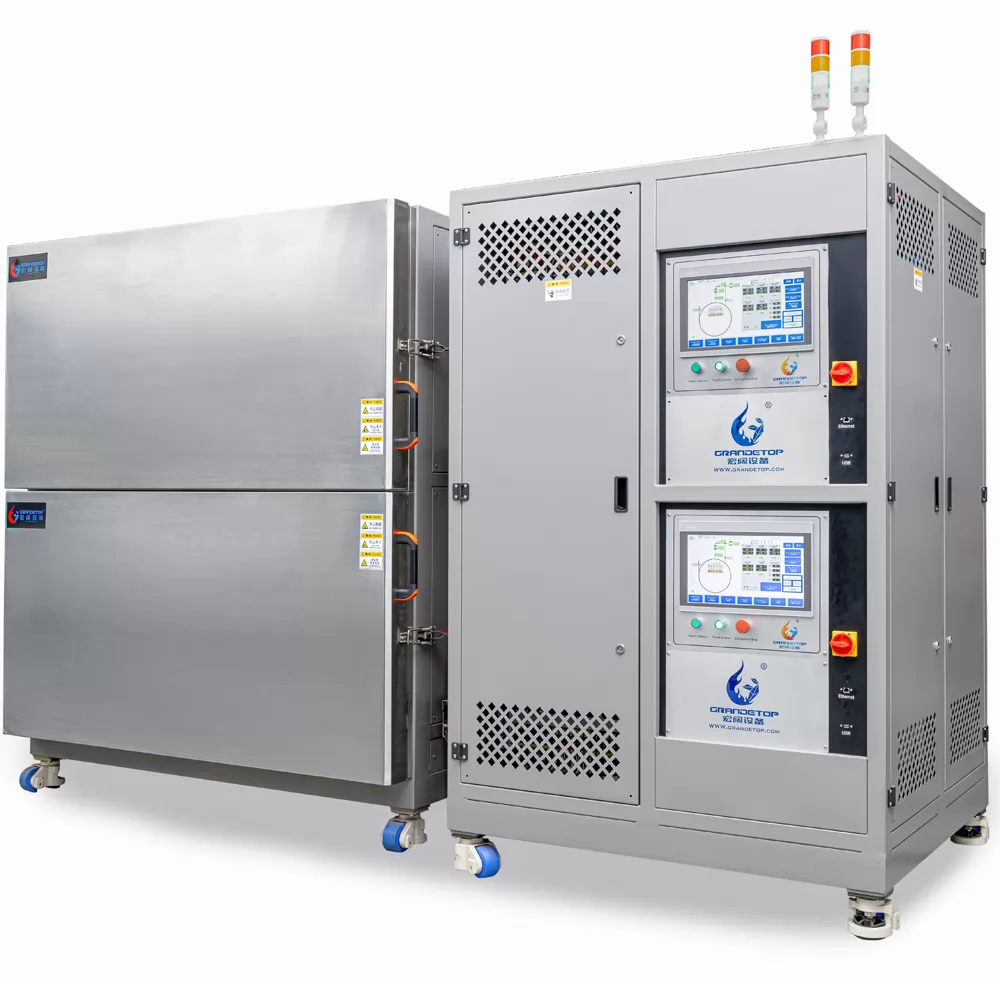

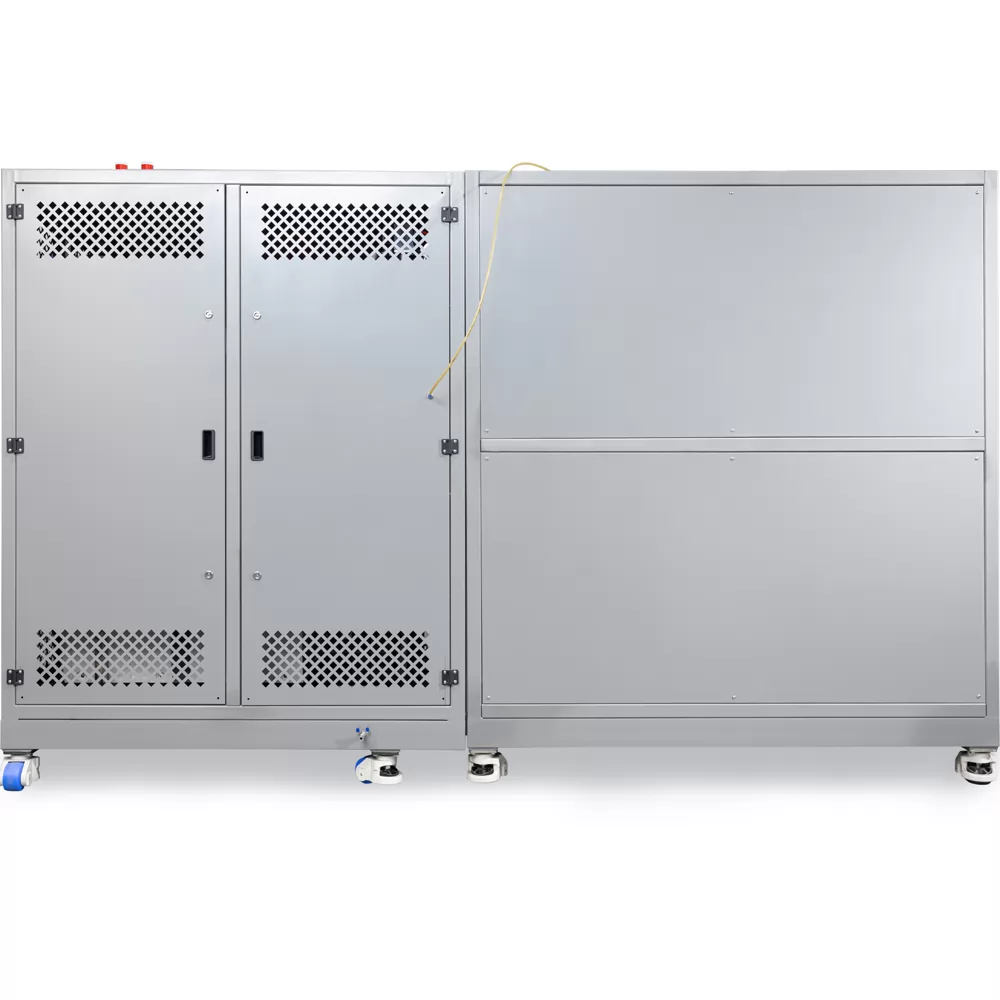

Vacuum Filling Equipment

Vacuum Filling Equipment is applied for vacuum water adding, vacuum filling, water, absolute ethanol and other liquid media. The equipment is equipped with a deionized water treatment system and can also be used for vacuum filling of deionized water.

Inquire Now

Technical Parameters:

Applicable media: deionized water (the equipment includes a deionized water treatment system), absolute ethanol and other liquid media;

Number of output channels: 1/2 channels;

Ultimate vacuum degree: within 100 Pa ;

Vacuuming speed: normal pressure ~100 Pa less than 20min (calculated based on product volume 50L);

Vacuuming speed: about 280L/min;

Filling flow adjustment range: 0~150g/S;

Flow meter: about 0~155g/S, accuracy 0.5%FS;

Filling water tank volume: 80L;

Pipeline: all made of 304 or 316 stainless steel;

Power requirements: AC380V, 50HZ, about 5KW;

Compressed air requirements: 0.5~ 0.6MPa ;

Working conditions: adapted to indoor working conditions, design altitude: <1500m, ambient air pressure: normal pressure;

Equipment size: approximately length 2500*width 1500*height 1600 (for reference only).
