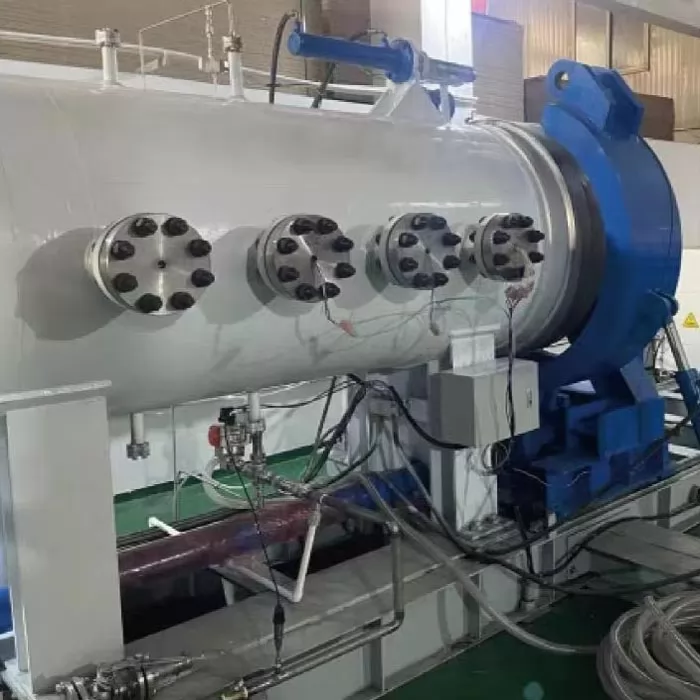

The equipment is equipped with a pressure chamber as required, which can achieve water depth control with 1 meter accuracy, and can be connected to external cables to measure stress and strain, test electrical performance, etc. The deep water high pressure environment simulation test device mainly consists of: pressurization system + hydraulic control system + deep water high pressure environment simulation chamber + data acquisition system (optional) + underwater monitoring device (optional) + water circulation system (optional) and other components.
Application:
Underwater valve hydrostatic housing/pressurized operation test;
Underwater control module hydrostatic pressure/pressure control function test;
External pressure test of deep-water submersibles, detectors, and samplers; sealing performance test of underwater robots and waterproof cameras; marine simulation test of wires and optical cables;
Underwater manipulator operation test under pressure;
Underwater separator external pressure test;
BOP sealing performance external pressure test;External pressure test of sealing performance of components;
External pressure test of pressure and other sensors;External pressure test of cabin penetrations, watertight connectors (electrical), and umbilical cord terminals;
External pressure test of insulation materials;
External pressure test of buoyant materials;
Underwater external pressure test of other conventional small-sized components.
Technical Parameters:
Simulation depth range: 0~12000 meters; (can be deeper)
Pressure range: 0~120MPa; (can be higher)
Test medium: water, seawater or oil; (please consult for special media)
Medium temperature: normal temperature; (please consult for other ranges)
Test chamber size: customized according to the size of the test workpiece;
Testing stations: 1-10; (can be expanded)
Ambient temperature: -45℃~120℃; (please consult for other ranges)
Measurement accuracy: ±0.5%FS; (can be higher)Control accuracy: ±1% FS;
Driving power:Compressed air 0.5MPa~<0.8MPa;
Control mode: automatic/manual.
Features:
Use high-quality pneumatic liquid booster pumps and electric pumps, ultra-high-pressure valves, pipe fittings, and connectors imported from the United States;
The system design is reasonable, the component quality is stable and reliable, and the system operation is guaranteed to be stable and reliable in principle and in terms of spare parts;
The entire machine piping system is made of stainless steel, with weldless connections and cone seals, which is suitable for most hydraulic system sealing requirements;
Pumps, valves, pipe fittings, and joints are all imported from the United States to ensure the quality and safety of the equipment. The material is 316 stainless steel and can be used for most liquid pressure test media;
Data collection system. (optional)
