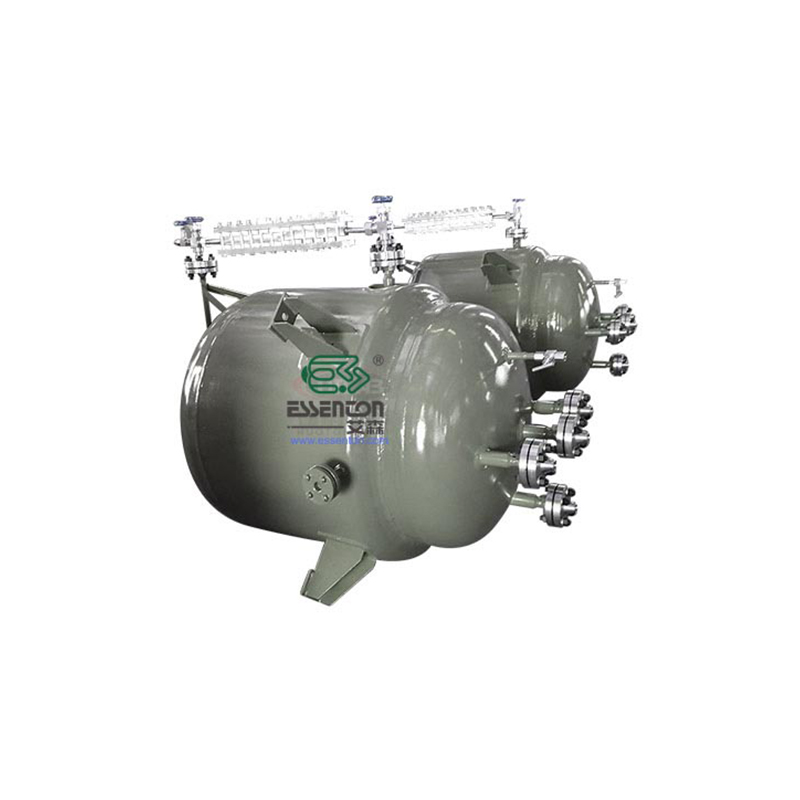

High Pressure Storage Tank

High-pressure storage tanks are indispensable key equipment in the industrial production process. They are widely used in nuclear industry, petrochemical industry, metallurgy, medicine, food, new energy, new materials and many other fields. The development of society and various production needs With the increase in the number of storage tanks, the structural dimensions and structural forms of storage tanks are becoming more and more complex. In many cases, high temperature and high pressure working conditions are used, which makes the design requirements of storage tanks become higher and higher.

Specifications and technical parameters of some storage tank cases:

Nominal volume: 1L-50000L

Main body material: S30408/S31603

Design pressure: 0.1-10.0MPa

Design temperature: -196~220℃

Structural form: open/closed

Nozzle distribution: customized design according to user requirements

Outer half-pipe high-pressure storage tank configuration and parameters

Pressure vessels and storage tanks for different purposes are usually customized according to different pressure and temperature materials;

The kettle body materials usually include: Q345R, 16MnDR, S30408, S31603, 310S, SS2205, stainless steel composite plate, nickel material, titanium material, Hastelloy, nickel, zirconium, etc.

Examples of types of large high-pressure vessels, composite plate pressure vessels, and high-pressure storage tanks:

Special material storage tanks, titanium storage tanks, nickel storage tanks, Hastelloy storage tanks;

Air storage tanks, hydrogen storage tanks, hydrogenation reactors, nitrogen storage tanks, ethylene storage tanks, etc.;

Vertical storage tanks, buffer tanks, separation tanks, horizontal high-pressure storage tanks.

Carbon steel storage tank

Main characteristics: non-explosive

Main materials: Q245R Q245R, etc. Special materials can also be customized

Product penetration test: After welding, the product is tested for leakage with kerosene. If there is no leakage, it is qualified. The air tightness pressure test is determined based on negotiation and is strictly tested before leaving the factory.
