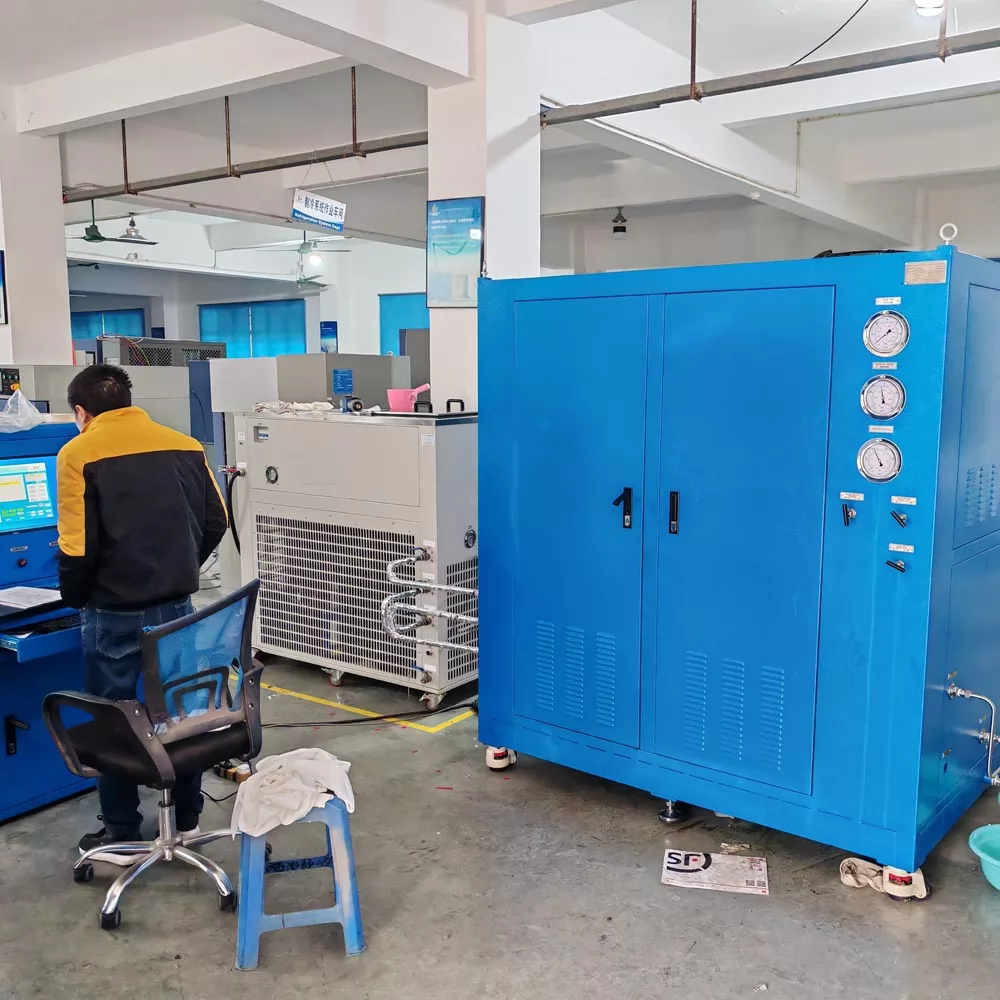

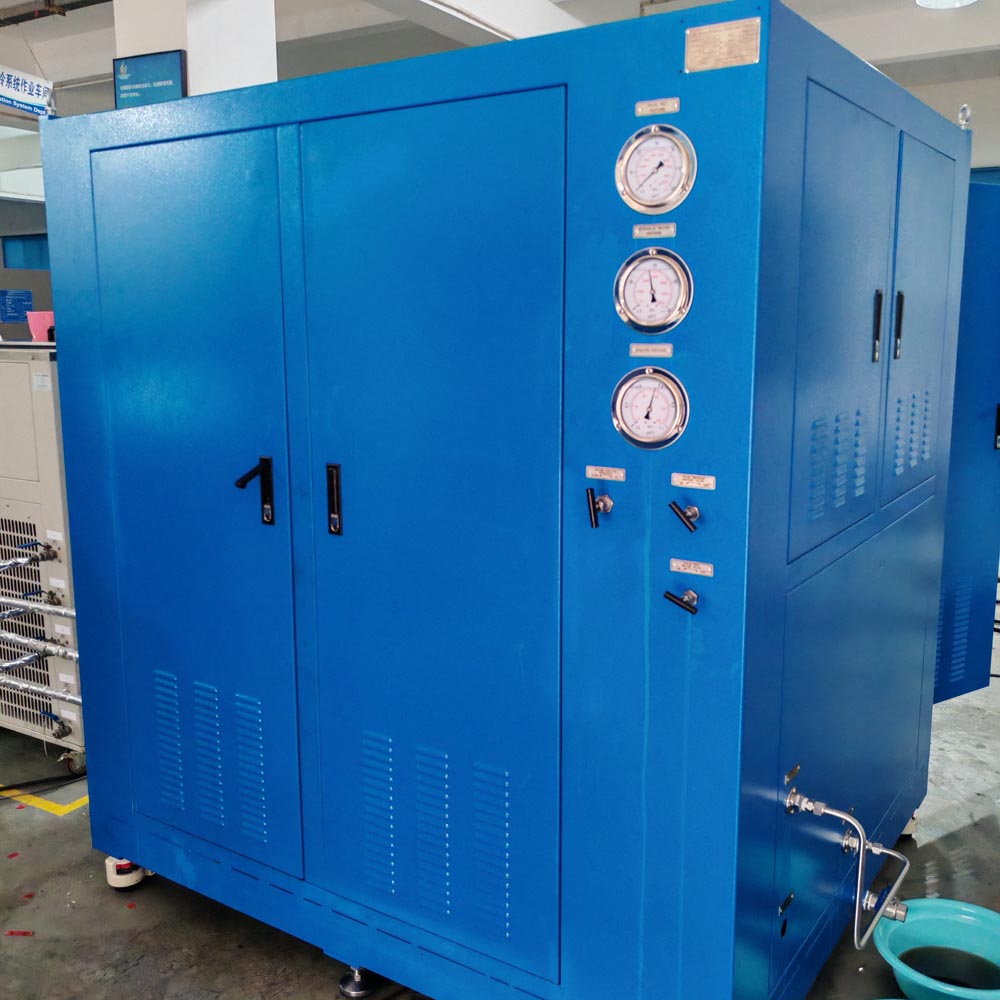

Fire Extinguisher Pressure Alternating Tester

The fire extinguisher pressure alternating test machine meets the test requirements of GB/T4351.1-2005 Portable Fire Extinguisher and GB 8109-2005 Trolley Fire Extinguisher. It simulates filling and applies high and low pressure alternating pressure to the product until the set number of times is reached or failure occurs. It is fully automatically controlled and equipped with an explosion-proof cabin and failure detection device. It has a dedicated pressure alternating control software. The alternating pressure, frequency and number of times are adjustable. During the test, the user only needs to set the parameters and then start the test with one button.

Inquire Now

Technical Parameters:

Test medium: water;

Medium temperature: normal temperature;Ambient temperature: normal temperature;

Set pressure: 30MPa;

Flow rate: 20L/min;

Control mode: automatic control;

Test station: 1;

Pressure control accuracy: ±2%;

Pulse frequency: 0.1HZ for general gas cylinders; (the frequency for large gas cylinders will be lower)

Temperature control accuracy: ±0.5℃;

Weighing measurement control accuracy: ±1g;

Pressure measurement accuracy: 0.25 level pressure sensor & 1.0 level pressure gauge, data acquisition time ≤ 100ms;

Power supply:AC220V50Hz;.

Gas source requirement: ≤7Bar, filtration accuracy 5μ, normal pressure dew point: 3℃, oil content (PPM): ≤5.0;

Maximum gas consumption: ≤0.5m3/min.

Standards:

GB4351.1-2005 Portable fire extinguishers Part 1 Performance and structural requirements;

GB4351.2-2005 Portable fire extinguishers Part 2 Requirements for seamless steel cylinders of portable carbon dioxide fire extinguishers;

GB 8109-2005 Trolley fire extinguisher;

GA95-2007 Maintenance and scrapping procedures for fire extinguishers;

GB/T 9251-2011; GB/T15385-2001;

Other standards.
