Featured Reactor

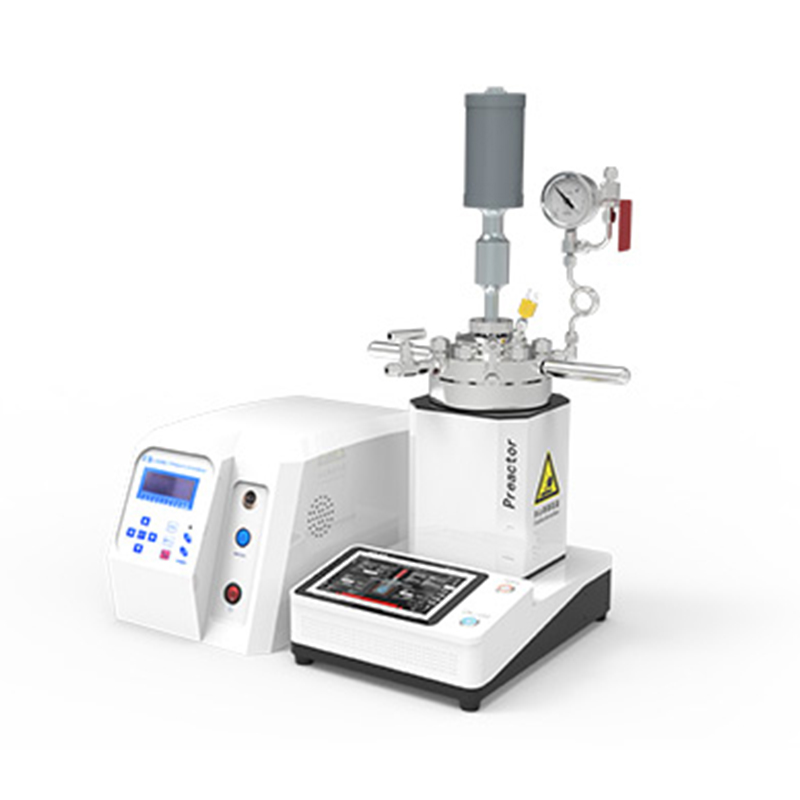

Pressure Ultrasonic Reactor

Pressure Ultrasonic Reactor is applied for various ultrasonic extraction, ultrasonic catalysis, ultrasonic micro reaction, ultrasonic high-pressure synthesis, ultrasonic crushing, ultrasonic separation, hydrogenation, gas-liquid two-phase, liquid-liquid two-phase, exothermic reaction and fine chemical industry. It is widely used in nano industry, biology, petrochemical industry, chemistry, pharmacy, polymer synthetic dyes, jewelry, aerospace, metallurgy, automobile manufacturing and other fields.

Features

High temperature, high pressure, ultrasonic reaction;

High temperature, high pressure, ultrasonic extraction;

High temperature, high pressure, ultrasonic catalysis.

Chinese medicine extraction, cell, bacterial, viral tissue breakdown.(e.g. extraction of cell inclusions)

Dispersion and homogenization of particles and emulsification of products.(Dispersion of nanomaterials, silica, carbon dioxide, carbon nanotubes, graphene.,etc.)

Faster dissolution, faster chemical reactions.(e.g. for chemical synthesis)

High temperature, high pressure, ultrasonic extraction;

Technical Parameters

ModelEUR-100mLEUR-300mLEUR-500mL
Volume100mL300mL500mL
Pressure2~10MPa
MaterialTitanium Alloy Material
Piezoelectric Frequency Conversion Energy ConverterCV33, PZTLead zirconate titanate piezoelectric ceramics diameter: 44mm, Length: 152mm
TimingPID PLC LCD, 1s~99h adjustable
Ultrasonic ModePulse Mode/ Continuous Mode
Power Regulation0%~ 100%, 5%increasing
Frequency20KHZ
Power SupplyAC 1Ψ110V;AC 1Ψ 220V;3Ψ 380V 60/50Hz
