Photochemical Reactor

It is used to study the chemical reactions of gas phase, liquid phase, solid phase and flow system under simulated ultraviolet light, visible light and special simulated light. There are two kinds of reactors: high pressure and atmospheric pressure, and the temperature can also be controlled. The light source can be built-in or external according to the needs of the test process. Light source: the light source can be led bulb, low-pressure ultraviolet lamp tube, Le lamp strip, mercury lamp, xenon lamp, high-pressure ultraviolet lamp, metal halide lamp, etc

Example 1: High pressure photothermal catalytic reactor

Volume: 100ml

light source: 300W, 500W Xenon lamp external illumination

Pressure: 10MPa

Window: Sapphire luminous diameter Φ 30mm

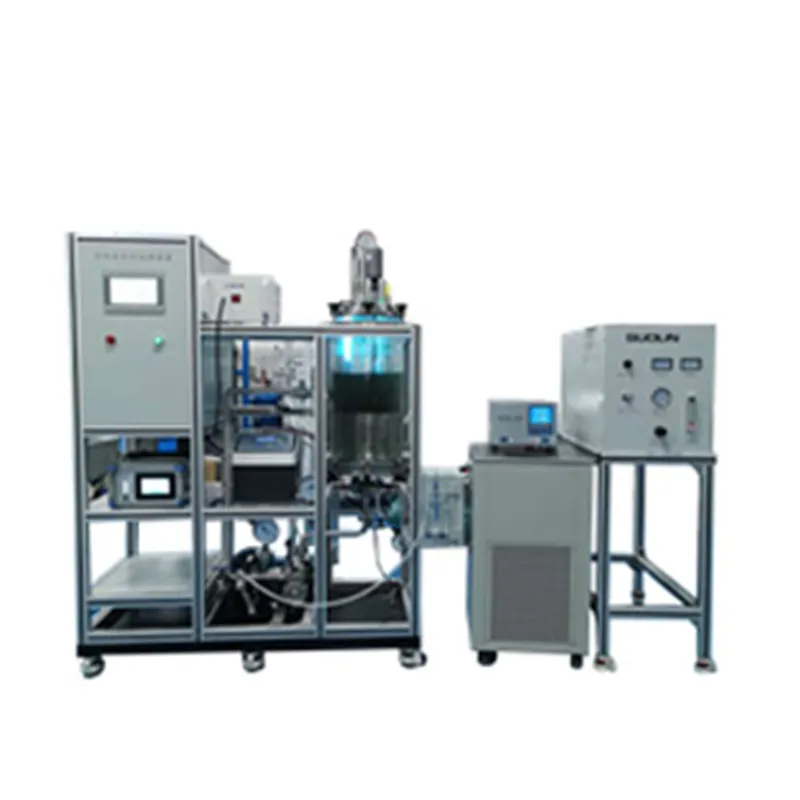

Example 2: Photochemical + ultrasonic catalytic device

Volume: 20L

light source: Ultraviolet lamp&Built in electrodeless light source

Pressure: normal pressure

Temperature: 50℃

In addition, it is equipped with ultrasonic function

There is a window on both sides of the reactor, and the light passing diameter of the window Φ 30mm. The window material can be stone or sapphire according to the working conditions.

Both sides can be illuminated by LED spotlights while the camera is transmitted to the computer to observe the viscosity, color change and stratification in the kettle in real time.

Volume: 100ml, 250ml, 500ml, Customizable

Pressure: max 10MPa

Temperature: max 250℃
