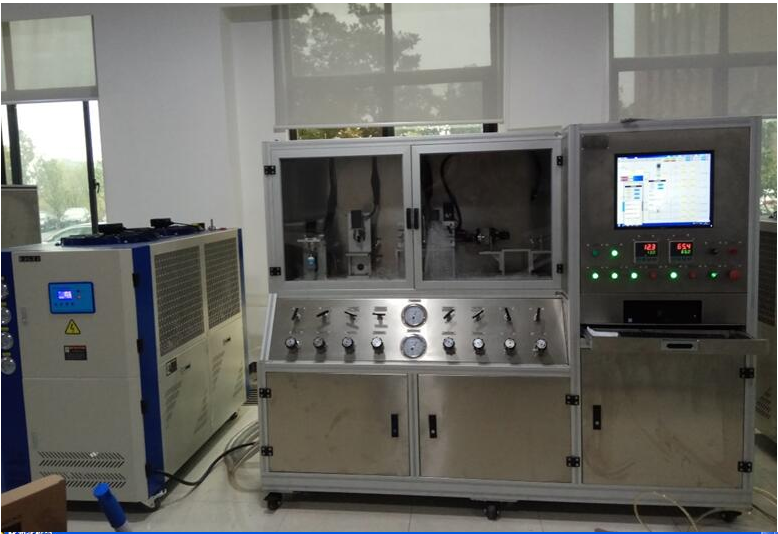

Toilet Gravity Flushing Device Thermal Deformation Tester
The gravity flushing device for toilet is suitable for the thermal deformation test of the water inlet valve. It meets or exceeds the requirements of the standards such as "GB/T 26730 Gravity flushing device and sanitary ware rack for sanitary ware toilet" and "Gravity flushing device for sanitary ware toilet" of the China Building Sanitary Ceramics Association.
Main technical parameters:
1. Maximum pressure of water system: 1.2 MPa, accuracy level 1.0;
Pressure sensor: range 0~1.6MPa, accuracy 0.25 level, stability ±0.02MPa; acquisition frequency 900Hz to ensure the accuracy of water pressure;
2. Temperature control range and accuracy: room temperature ~ 70℃, +1℃;
Temperature sensor: Range: -50℃~120℃, accuracy +0.5℃, minimum display 0.01℃
3. The rest shall meet the requirements of the relevant items in the standard "GBT 26730 Gravity Flushing Devices and Sanitary Ware Toilets for Sanitary Ware and Toilets " and the China Building Sanitary Ceramics Association standard "Gravity Flushing Devices for Sanitary Ware Toilets".
Main functions of the equipment:
Water inlet valve thermal degeneration test
Automatic water tank heating, automatic pressurization, automatic testing and recording of test data (pressure, temperature, number of cycles, time).
