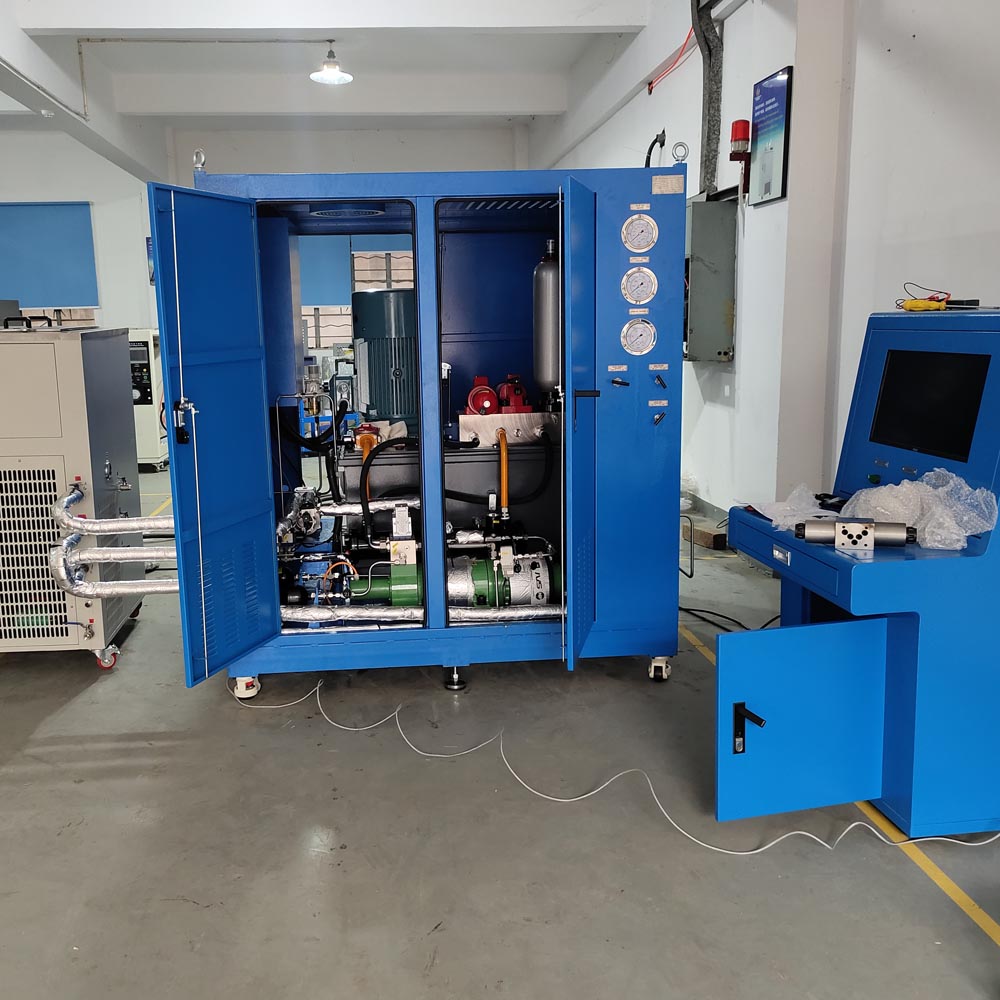

Temperature Control Faucet Comprehensive Tester
Equipment Introduction:
The temperature-controlled faucet comprehensive testing machine is mainly used for the mechanical properties of the temperature-controlled faucet against water pressure; sealing performance, flow test, water outlet temperature stability, safety, maximum water outlet temperature test; service life, flow regulator torque test, temperature regulator torque test.
Reference implementation standards:
QB/T 2806-2017 temperature control faucet, GB/ T 24293-2009 CNC constant temperature faucet, etc.
Technical Parameters:
1.The water system provides pressure and accuracy:
Cold water system: static pressure: 0~2.0Mpa, accuracy 0.5 level, dynamic pressure: 0.05~0.6Mpa, accuracy 0.5 level
Hot water system: static pressure: 0~2.0Mpa, accuracy 0.5 level, dynamic pressure: 0.05~0.6Mpa, accuracy 0.5 level
Pressure sensor: range 0~2.5MPa, accuracy 0.25 level, stability ±0.02MPa, acquisition frequency 900Hz, to ensure the accuracy of water pressure;
The booster pump system provides pressure and accuracy: 0.5~3.0MPa, accuracy level 1.0;
Pressure sensor: range 0~4.0MPa, accuracy 0.25 level, stability ±0.02MPa, acquisition frequency 900Hz, to ensure the accuracy of water pressure.
2.Flow control range: 0~40L/min (0~0.67L/s), accuracy level 1.0.
Flow sensor range: 0.2L/min~50L/min (0.003~0.833L/s), accuracy level 0.8 and above, resolution 0.1L/min (0.002L/s).
3.Temperature control range and accuracy
Cold water temperature control range and accuracy: 4~29℃, +1.0℃.
Hot water temperature control range and accuracy: room temperature ~ 90℃, +1.0℃
Temperature sensor range: -50~120℃, accuracy +0.5℃
4.The hot water heating rate is controlled at 3+0.6K/min (from 60℃ to 73℃)
5.Torque sensor range: 0~±50N.m, accuracy 0.5 level, stability 0.3 level
Main functions of the equipment:
Mechanical properties of temperature-controlled faucets against water pressure; sealing performance, flow rate test, water outlet temperature stability, safety, maximum water outlet temperature test; service life, flow regulator torque test, temperature regulator torque test.
