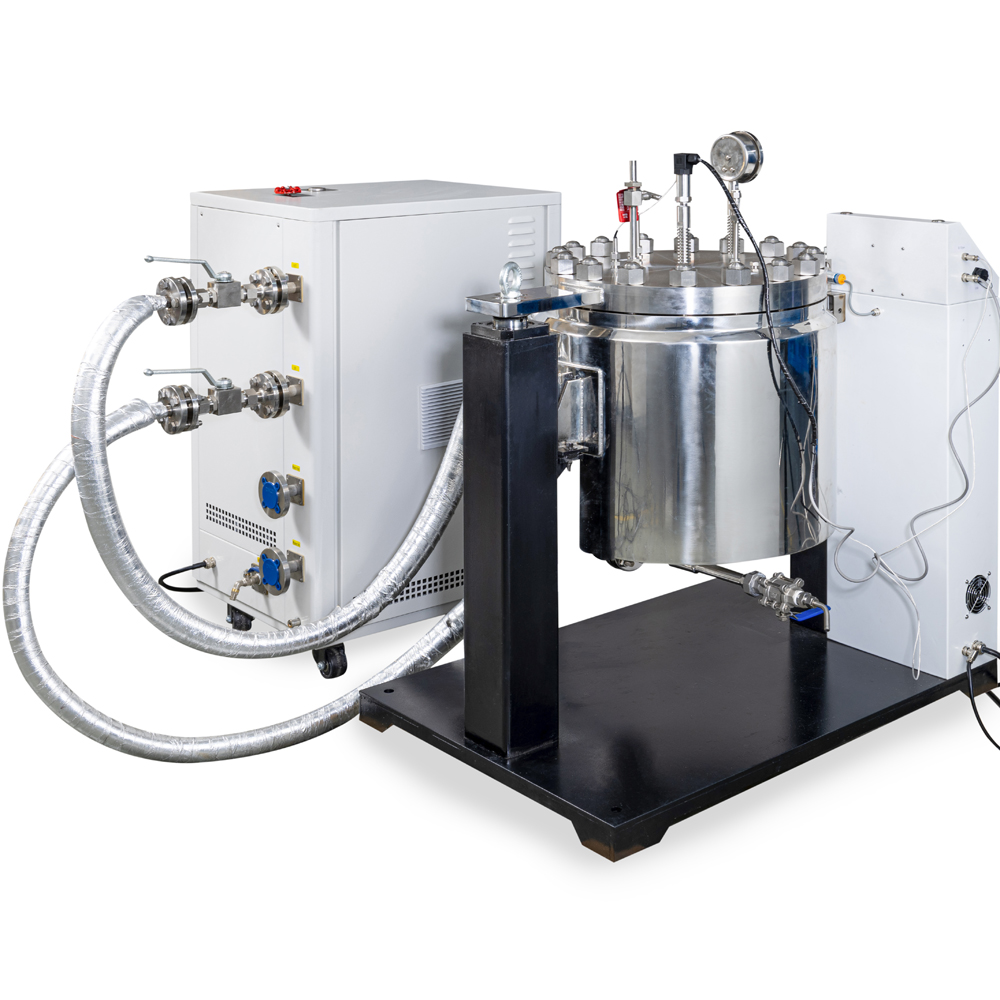

Non-contact Water Supply Equipment Life Tester
The non-contact water supply equipment life tester is mainly used for the life test of non-contact water supply equipment and the working life test of non-contact flush valves. It meets or exceeds the requirements of GB/T 26750 pressure flushing devices for sanitary ware toilets and CJ/T 194 non-contact water supply equipment.
Main technical parameters:
1. Static pressure of water system: 0~0.6MPa, accuracy level 1.0;
Water system dynamic pressure: 0~0.6MPa, accuracy level 1.0;
Pressure sensor: range 0~1.6MPa, accuracy 0.25 level, stability +0.01MPa, acquisition frequency 900Hz, to ensure the accuracy of water pressure;
2. Flow control range and accuracy
Flow sensor: Range: 0.5~50L/min (0.0085L/s~0.85L/s), accuracy level 0.8.
Measuring range: 5~300L/min (0.085L/s~5L/s), accuracy level 0.8.
3. Water system temperature requirement: less than or equal to 30°C, accuracy level 1.
Temperature sensor: Range: 0℃~100℃, accuracy level 0.5, minimum display 0.01℃.
Device Function
Non-contact water supply equipment life, non-contact, flushing valve life test, automatically test according to test requirements, automatically record pressure, test times, operating force, temperature and other test data, abnormal alarm and other functions;
The test results can be exported as standard reports;
With water tank water temperature control function;
Automatic pressure adjustment;
Install the conversion joint tooling and connect the pipe sections according to the standard configuration;
The equipment has functions such as automatic liquid level detection, automatic water addition, water recycling, and abnormal pressure alarm.
