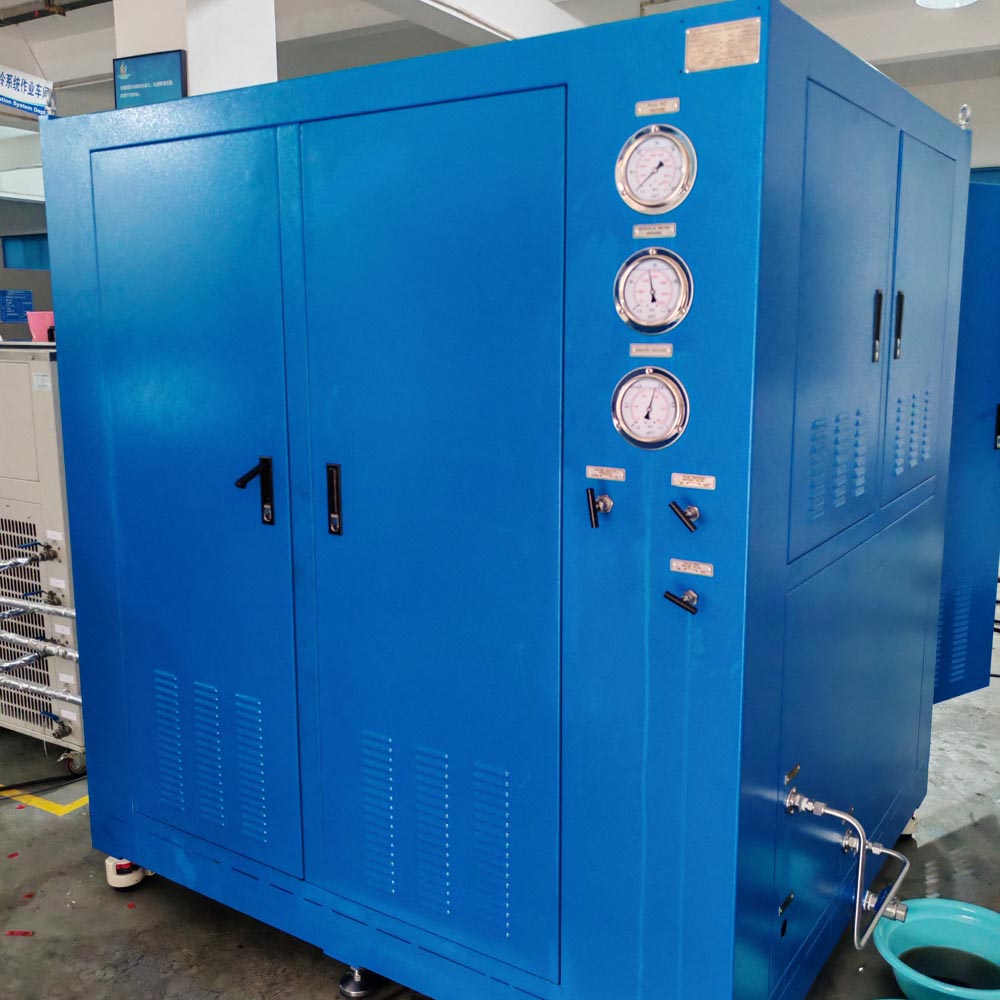

Mechanical Flush Valve Life Tester
Mechanical flush valve life tester is mainly used for mechanical flush valve life test. The equipment meets or exceeds the requirements of GB/T 26750 (Pressure-type flushing device for sanitary ware and toilet) and other standards.
Technical Parameters:
Maximum pressure of water system: 0.9MPa, accuracy level 1.0;
Pressure sensor: range 0~1.6MPa, accuracy 0.25, stability ±0.02MPa, acquisition frequency
900Hz, to ensure the accuracy of water pressure;
The maximum temperature requirement of the water system is 30℃, with a precision of level 1.
Temperature sensor: Range: 0℃~100℃, accuracy level 0.5, minimum display 0.01℃.
Mechanical flush valve driving force: less than or equal to 80N, accuracy level 1.
Load sensor: 0-100N, accuracy 0.5 level.
Features:
It can automatically perform tests according to test requirements, automatically record test
data such as pressure, test times, operating force, temperature, etc., and report abnormalities.
Alarm function;
The test results can be exported as standard reports;
With water tank water temperature control function;
Automatic pressure adjustment;
Equipped with DN15, 20, 25, 30 and other conversion joints and connecting pipe sections;
Configure flush valve installation tooling
The equipment has functions such as automatic liquid level detection, automatic water
addition,water recycling, and abnormal pressure alarm.
