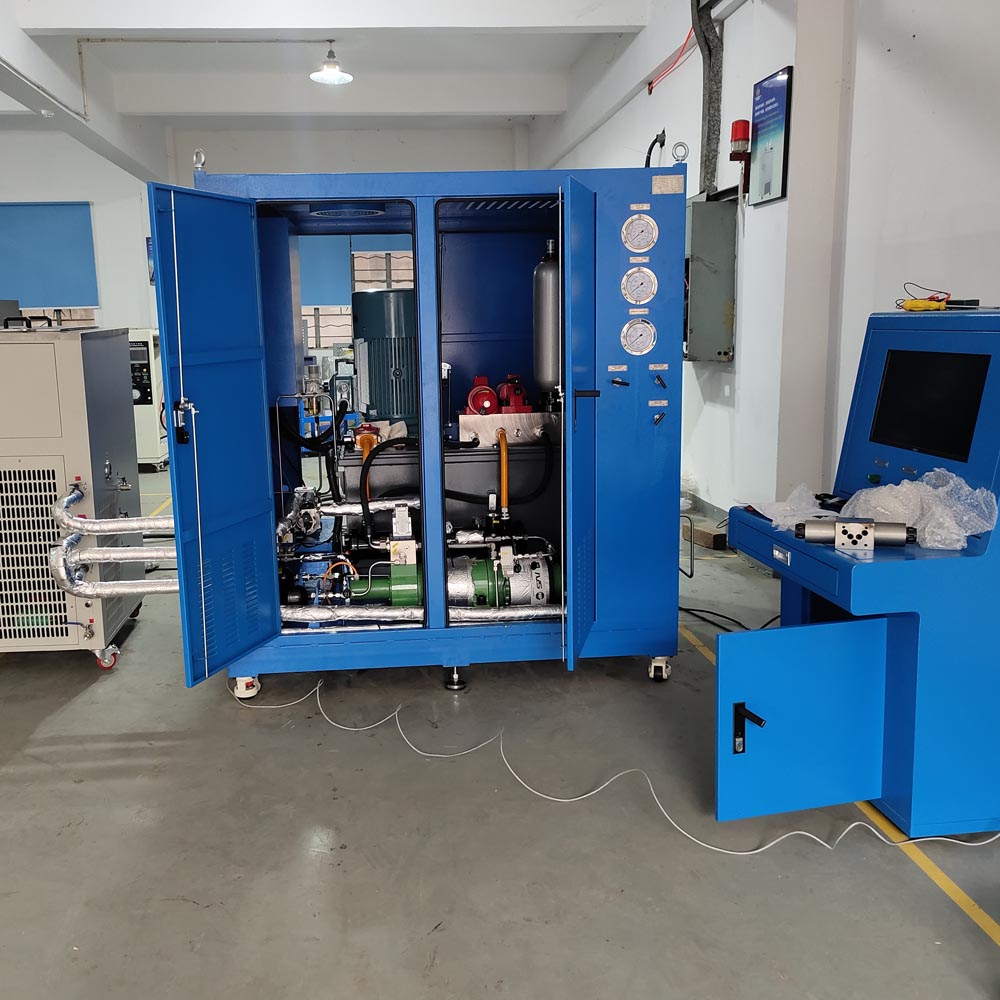

Mechanical Flush Valve Comprehensive Tester
Mechanical flush valve comprehensive testing machine equipment is suitable for mechanical flush valve flushing water volume measurement, sealing performance test, flushing maximum instantaneous flow, strength performance, operation performance: flush valve water efficiency test. Meet or exceed GB/T 26750 Sanitary ware toilet pressure type) flushing device, and meet GB 28379 toilet flush valve water efficiency limit value and water efficiency grade and other standard requirements.
Technical Parameters:
Maximum pressure of water system: 2.5MPa, accuracy 0.5 level;
Pressure sensor: range 0~4MPa, accuracy 0.25 level, stability ±0.02MPa, acquisition frequency 900Hz, to ensure the accuracy of water pressure
Pressure sensor: range 0~0.6MPa, accuracy 0.1 level, stability ±0.02MPa, acquisition frequency 900Hz, to ensure the accuracy of water pressure;
Flush valve flow test requirements:
When the pipe diameter is ≤DN15, the flow rate is ≤6L/min (≤0.1L/s);
When the pipe diameter is ≥DN25, the flow rate is >72L/min (≤1.2L/s);
Flow meter detection range and accuracy: Range: 0.5~50L/min (0.0085L/s~0.85L/s), accuracy level 0.5.
Measuring range: 5~300L/min (0.085L/s~5L/s), accuracy level 0.5.
Features:
Mechanical flushing valve comprehensive testing equipment can be used to measure flushing water volume, sealing performance test, flushing maximum instantaneous flow test, strength performance test, operating performance test, and flushing valve water efficiency test.
Automatic pressure adjustment;
Equipped with DN15, 20, 25, 30 conversion joints and connecting pipe sections;
Configure flush valve installation tooling;
The equipment has functions such as automatic liquid level detection, automatic water addition, water recycling, temperature detection, and abnormal pressure alarm .
