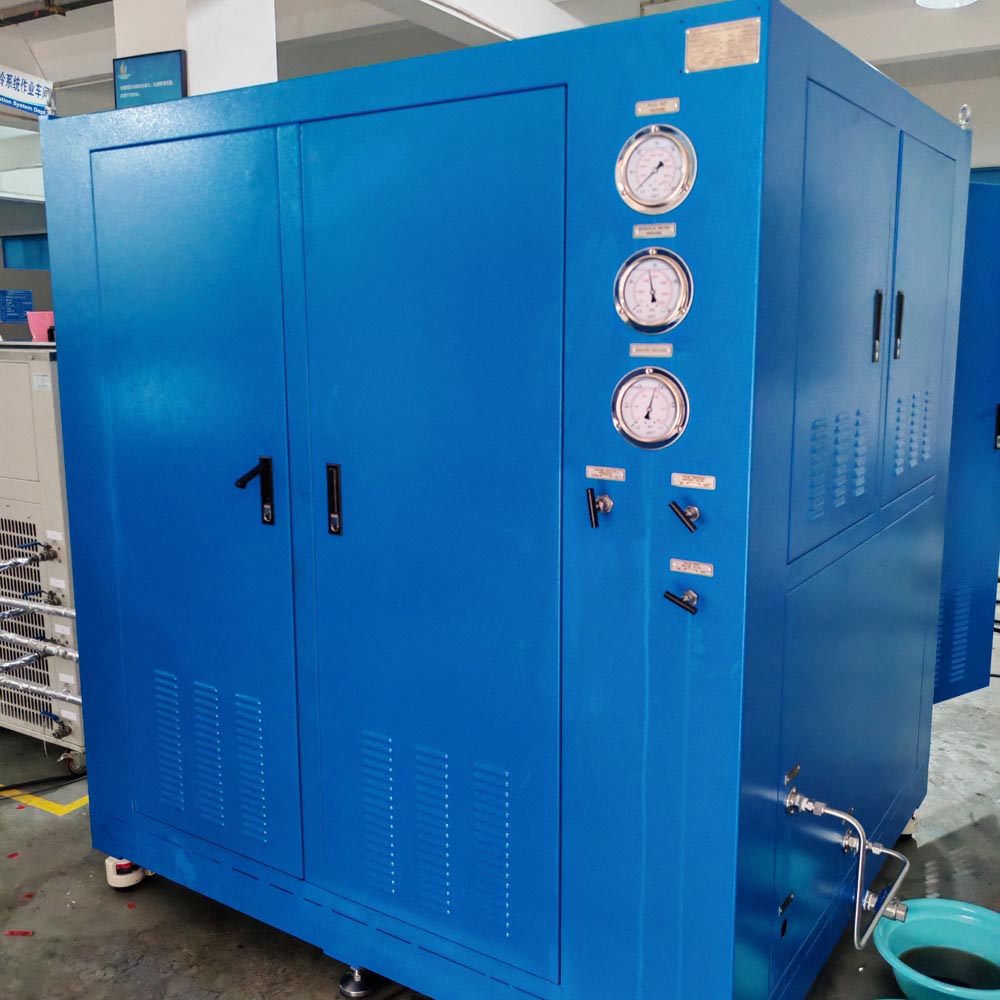

Faucet Life Testing Machine
The faucet life tester system is developed with reference to relevant fluid science and faucet standards. The equipment is mainly used for life testing of faucets, flower wine and other products. The whole system has the advantages of small size and light weight, simple operation, safety and reliability, wide application range, and adjustable output pressure.
The faucet life tester can perform faucet life test, single-handle single-control faucet life test, single-handle double-control faucet life test and double-handle double-control faucet life test by replacing the test fixture. The test medium cools the water to the corresponding temperature through the oil chiller, heats the water to the corresponding temperature through the heating pipe, and then passes through electric cooling. The hot water pump unit provides a pressure source to the test branch, adjusts the corresponding pressure of each branch, and connects the test workpiece to carry out relevant tests.
Technical Parameters:
Test medium: water;
Test pressure: Max 1.0MPa (can be higher);
Pressure test accuracy: Class 1.0 (digital pressure gauge);
Pressure control accuracy: ±2 FS%;
System flow: Q=2.0 m³ /h(33.3L/min);
Test stations: 1~4 stations (can be more);
Ambient temperature: normal temperature;
Test temperature: cold water temperature: 10℃~room temperature; hot water temperature:
room temperature~65℃;
Collection method: automatic collection;
Operation mode: manual, automatic.
Features:
The pressure of the test system uses an electronic digital display gauge with a display
accuracy of 0.5% FS. The test accuracy is sensitive and reliable.
The test bench has intelligent digital display function, and the operation process is controlled
and displayed in real time through the LCD display; it also has digital pressure gauge and
Mechanical pressure Table dual display;
Pressure acquisition accuracy: the test accuracy of the system inlet pressure test point is
≥1%FS ; the test accuracy of each pressure test point in the system is ≥0.5%FS ;
The test system has a reserved interface that can be connected to the industrial control
network and has an RS232 (RS485) interface that meets the RS232 (RS485) standard.
protocol
Through computer program control, each subsystem of the test can be controlled individually
and in linkage;
The control system can display and record the test data and curves such as pressure, flow,
temperature, etc. in real time during the test. set up
The test parameters are compatible with OFICE office software and can store data. The test
report can be printed at any time by connecting to a printer.
The equipment has an automatic alarm function. When a fault occurs, the alarm message will
be displayed on the screen to guide inspection and troubleshooting: emergency situations
Quang Ke
Manually press the emergency stop button to terminate the entire test;
Essenton test software is mature and stable, with a humanized operation interface and easy
operation; the nameplates, signs and safety signs of the test equipment are brightly colored
Clear and lasting.
