Faucet Comprehensive Performance Tester
The faucet comprehensive performance testing machine system is developed with reference to relevant fluid science and faucet standards. The equipment is mainly used to test the sensitivity, flow rate, sealing and other performance of faucets (tap). It can also be used for shower flow rate and life test of ball head connectors.

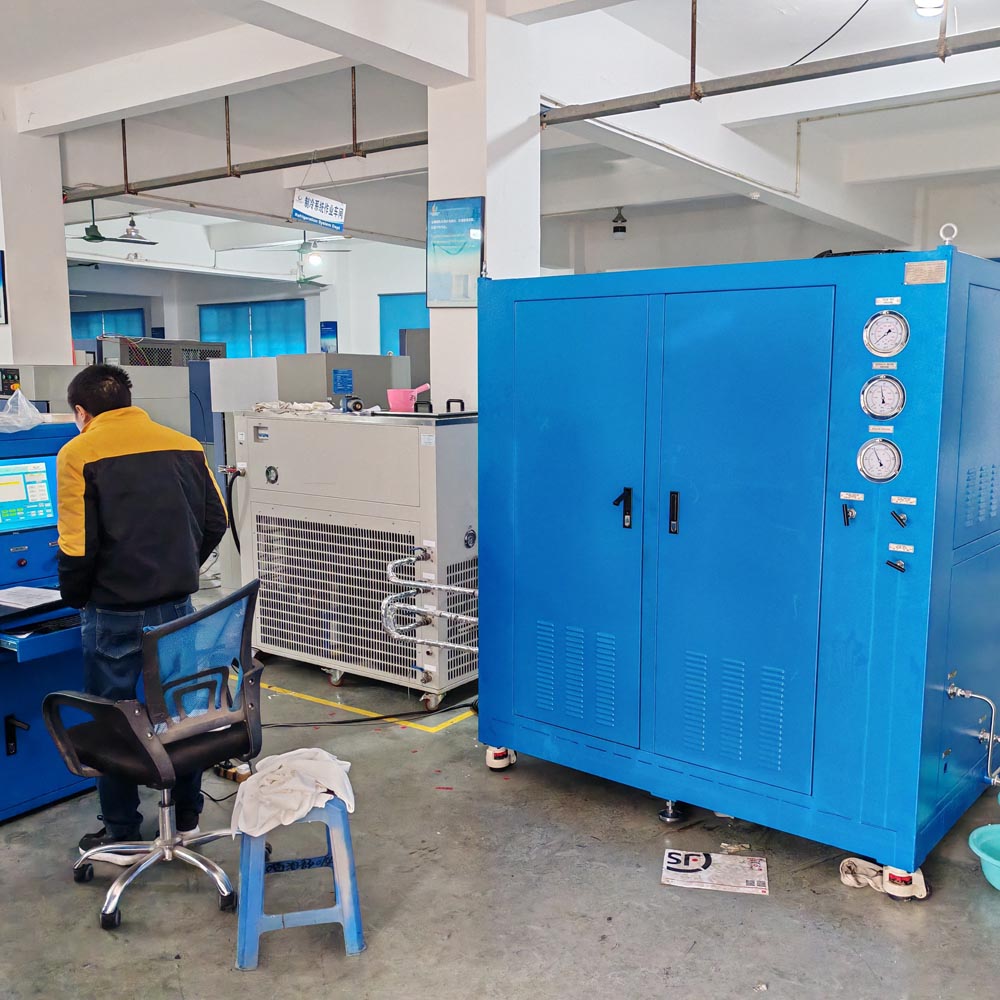

The faucet comprehensive performance tester can perform performance tests on faucets, shower heads and ball connectors by replacing the test fixtures. The test medium cools the water to the corresponding temperature through the oil chiller, heats the water to the corresponding temperature through the insect heating pipe, and then provides a pressure source to the test branch through the cold and hot water pump unit. The corresponding pressure of each branch is adjusted, and the test workpiece can be connected to carry out relevant performance tests.
Technical Parameters:
Use medium: tap water:
System pressure: 0.3 MPa~1.6 MPa (can be higher):
Pressure test accuracy: 0.5 level:
Pressure control accuracy: +2F.S%;
System flow: O=2.0 ㎥ /h;
Test station: 1 station (one for hot and cold, expandable);
Ambient temperature: normal temperature;
Test temperature: cold water temperature: 10℃~normal temperature (controllable); hot water
temperature: normal temperature~65℃;
Collection method: automatic collection;
Operation mode: manual/automatic.
Main features of the equipment:
The pressure of the test system is detected by a pressure sensor, and the pressure gauge
displays an accuracy of 0.5% FS. The test accuracy is sensitive and reliable ;
The test bench has intelligent digital display function, and the operation process is controlled
and displayed in real time through the LCD display; and there are pressure sensors and
Mechanical Pressure gauge with dual display;
Pressure acquisition accuracy: the test accuracy of the system inlet pressure test point is
≥1%FS; the test accuracy of each pressure test point in the system is 20.5%FS;
The reserved interface of the test system can be connected to the industrial control network. It
has an RS232 (RS485) interface that meets the RS232 (RS485) standard protocol.discuss;
Through program control of the computer, individual control and linkage control of each
subsystem of the test are carried out;
The control system can display and record real-time test data and curves such as pressure,
flow, temperature, etc. during the test process, and can be set by yourself.
It can set test parameters, be compatible with office software, and store data. It can be
connected to a printer to print test reports at any time ;
The equipment has an automatic alarm function. When a fault occurs, the alarm message will
be displayed on the screen to guide inspection and troubleshooting; in case of emergency
In this case, the entire test can be terminated by manually pressing the emergency stop
button ;
Essenton test software is mature and stable, with a user-friendly interface for easy operation;
the test equipment nameplates, signs and safety signs are brightly colored.
Bright, clear and lasting.
