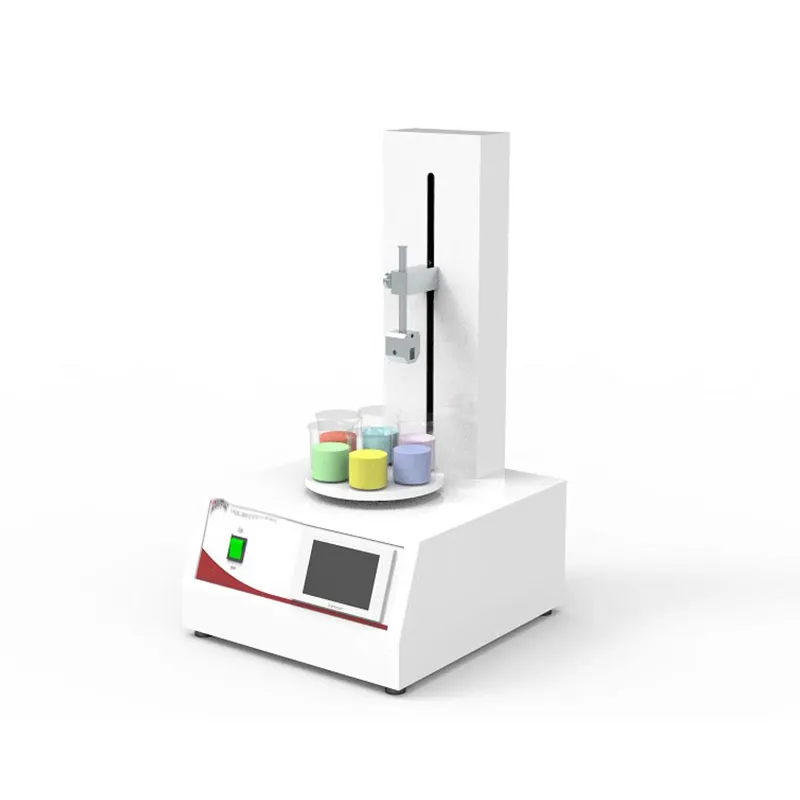

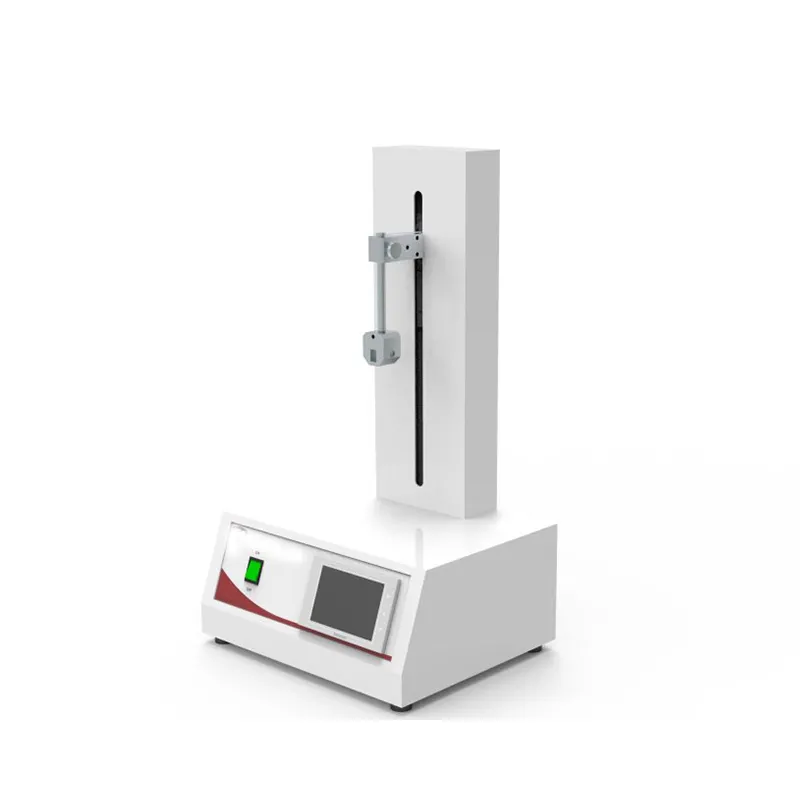

Dip Coater

This product is mainly used for preparing different kinds of film materials on the same substrate by sol-gel method. Place different solutions on the rotary table. By setting the coating procedure, the substrate enters the solution to pull the coating. After this coating, the rotary table automatically rotates the solution of the next layer of film directly below the substrate, the substrate drops into the solution to pull the coating, and the subsequent films are completed in turn. The running sequence of each station can be adjusted freely, and the shortest path can be selected intelligently. Each station has independent impregnation time, residence time and cycle times Product parameters of ETDC-300Dip Coater.

1, Imported linear guide rail and servo motor are adopted to accurately control the uniform lifting speed.

2, Imported linear guide rail and servo motor are adopted to accurately control the uniform lifting speed. The operation is stable without shaking, and the liquid level is free of vibration. Ensure the stability of the equipment and the uniformity of film formation.

3, The program control system independently developed by Huotong instrument is adopted. The lifting speed, lifting height, immersion time, coating times, coating time, falling speed and falling height can be adjusted through program control.

4, High end brand touch screen, clear interface and easy operation.

5, Special design fixture, more secure and firm clamping;

6, The whole machine is sprayed with plastic, and the appearance is exquisite and generous.

This product is mainly used for preparing different kinds of film materials on the same substrate by sol-gel method. Place different solutions on the rotary table. By setting the coating procedure, the substrate enters the solution to pull the coating. After this coating, the rotary table automatically rotates the solution of the next layer of film directly below the substrate, the substrate drops into the solution to pull the coating, and the subsequent films are completed in turn. The running sequence of each station can be adjusted freely, and the shortest path can be selected intelligently. Each station has independent impregnation time, residence time and cycle times Product parameters of ETDC-300m multi station immersion pull coater.
