Custom Reactor Systems

Complete Closed Vessel Test System

Not finding the pressure, temperature, or volume you are looking for? Let us customize a system for you.

Essenton's Custom Reactor Systems can be efficiently and cost effectively designed and built to meet your unique requirements. Our experienced technical sales, engineering, and production teams work directly with you to quickly, accurately, and economically proceed from system concept though manufacturing.

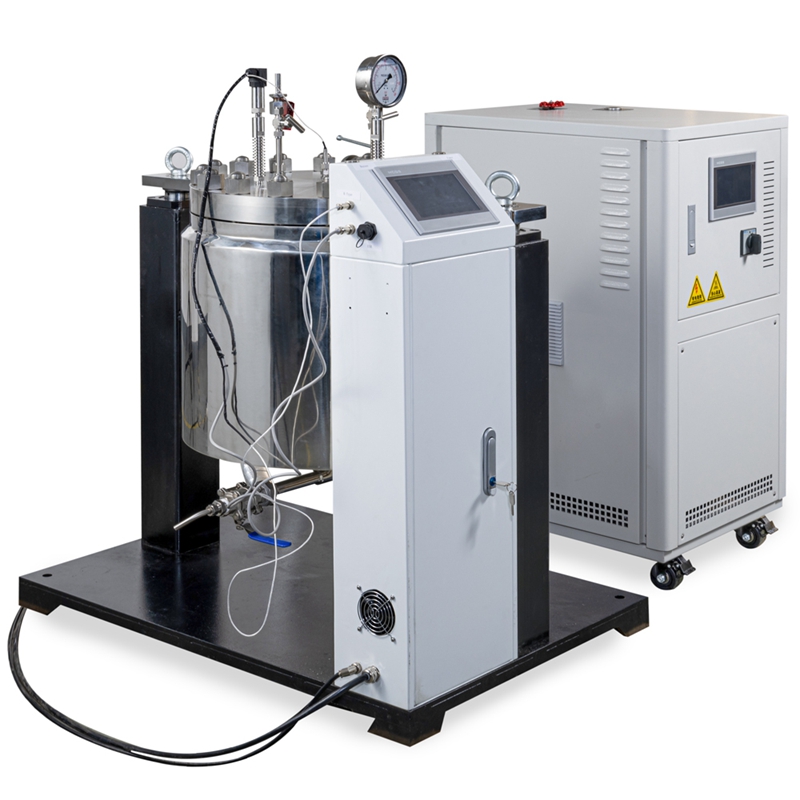

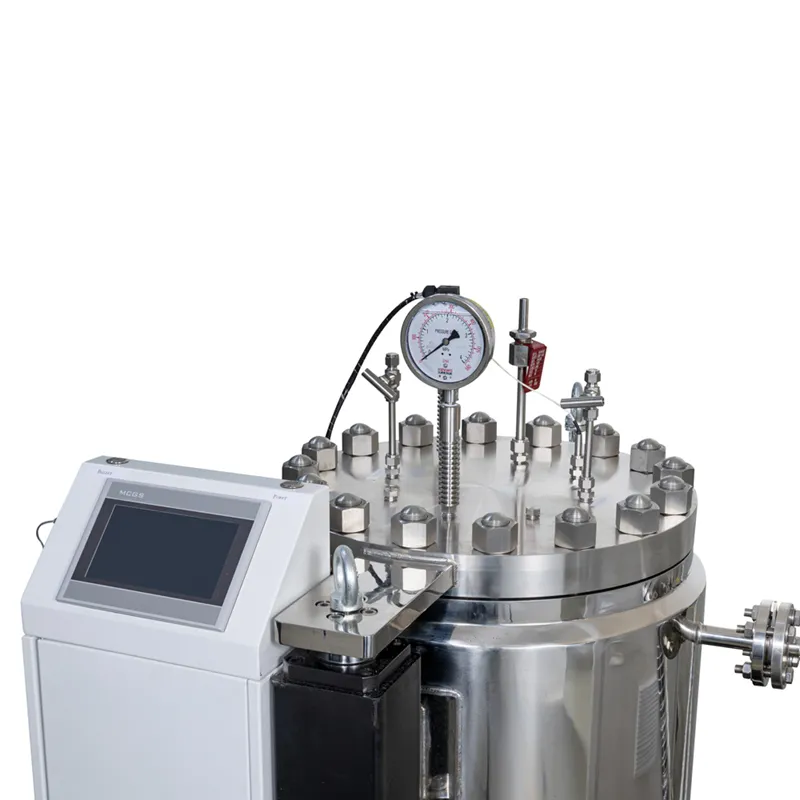

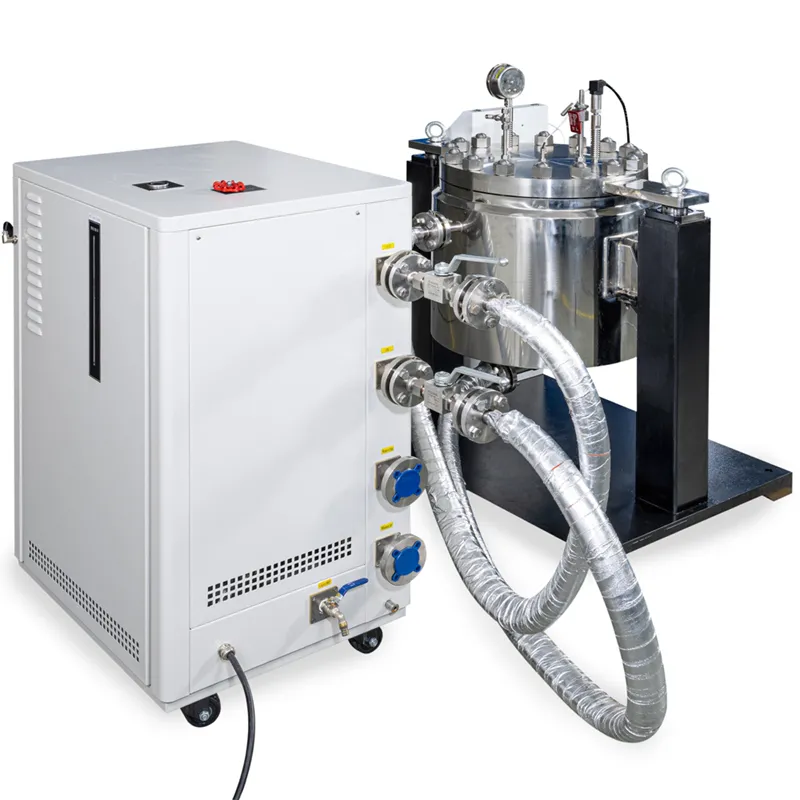

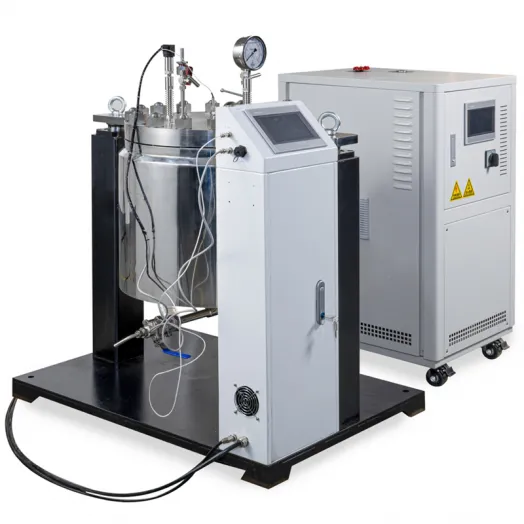

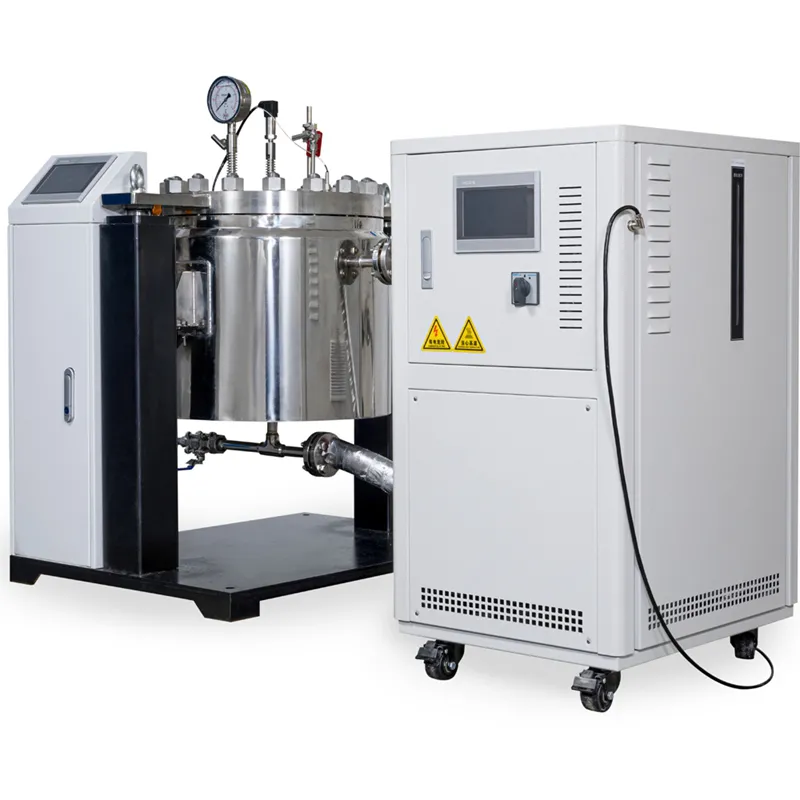

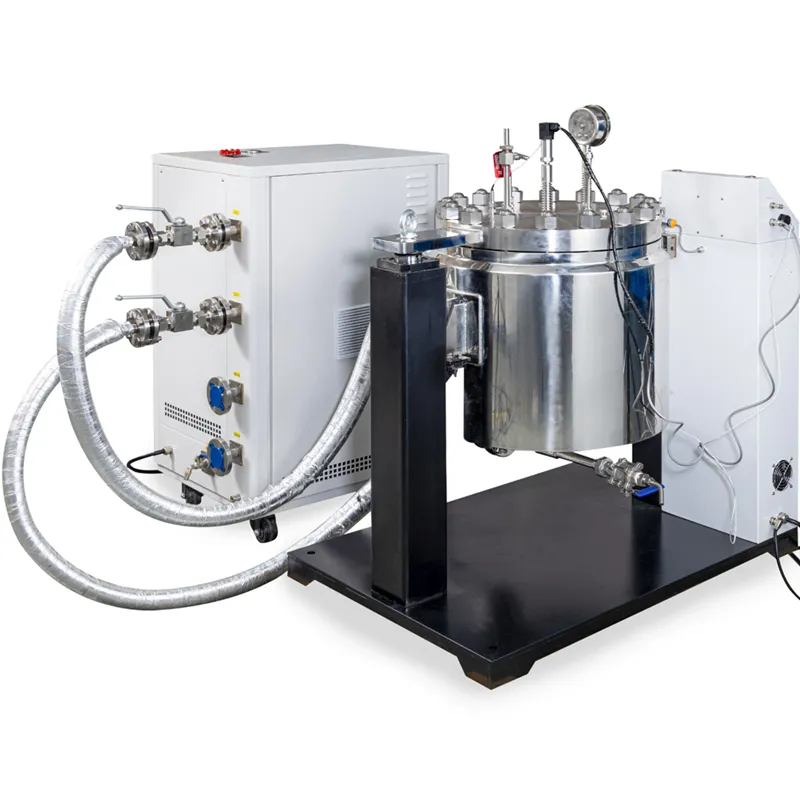

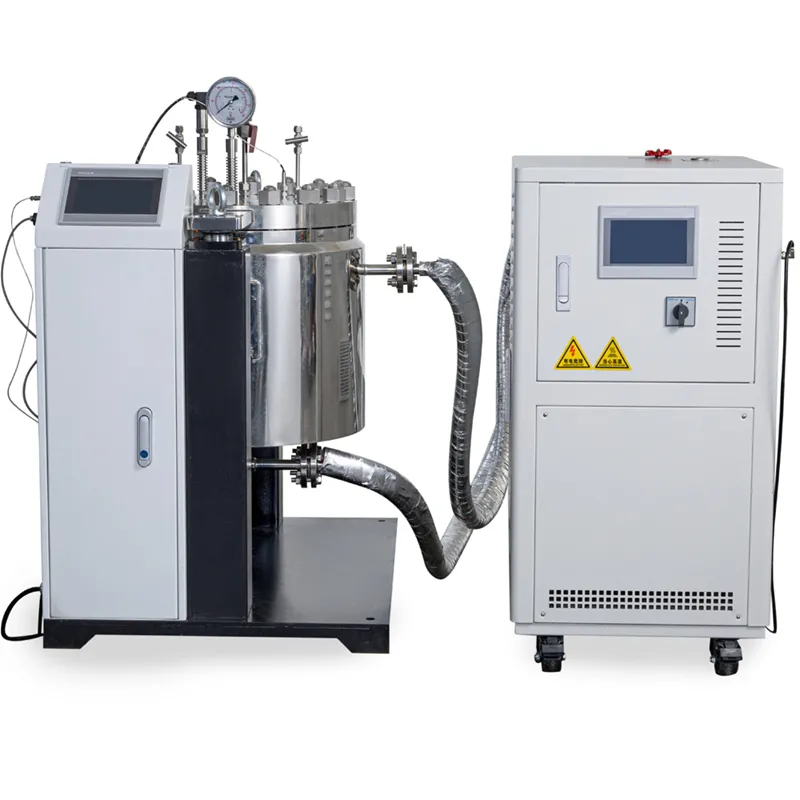

Complete Closed Vessel Test System with pressure calibrator set for single, double & triple base propellants (granular, tubular, flakes, strips etc)

Inquire Now Next Product

Technical Parameters

1, Technical Requirement
CVT system Volumes with Vessel	100 cm³ 2 Sets; 200 cm³ 2Sets; 700 cm³2 Sets
Working Pressure	Up to 5000 bar
Design Pressure	6000 bar
Material	High Strength Steel/Nickel chrome steel
Sample loading Density	0.2 g/cm³
Ignition of prop sample	Electrical & Mechanical
Chiller	Chiller for cooling Jacketed body of vessel, temperature sensor
Transducer	Piezoelectric
Pressure measuring capacity of transducer	0~6000 bar
2, Calibration
Calibration of test transducer	Software based system required for Calibration of transducers(Control, measurement and evaluationsoftware)
Calibration transducer of standard
Charge amplifier	Compatible version
3, Conditioning Chamber
Conditioning samples.	Chamber for propellant Temp range = - 40°C~ +55°C
4, Data acquisition systemMaximum sample rate 100 MS/s Acquisition of dataAnalysis of data in terms of RF, RV, Pressure - time, dp/dt-pressure, vivacity- p/pmax, impulse-p/pmax& burning /rising time etc.
5, Computer & SoftwareComputer System with 02 Nos 30" LED Monitor + ColourLaser Printer (3 in 1)Latest compatible operative system (Core i7 or greater) 2 TB HDD storage capacity &2 TB portable drive for data backup
6, Interlocking push safeties for activation of supply (built in breakers)

Scope of Supply

Hardware (Mechanical & Electrical)

The following hardware should be included in the supply:

Complete CVT system along with pressure calibrator set having built-in safety equipment and essential accessories.

Erection material such as steel structure for supporting machinery etc.

Digital multi-meter set and cables required for electrical service/installation.

Start / Stop control station for all motors (with ampere meters) along-with perforated cable trays for power & instrumentation and mounting accessories.

All valves, interconnecting piping, fitting, gaskets, couplings, bolts & nuts.

Consumable and auxiliary required during installation of machinery.

Soft and hard copy of software and provision of schematic interface modules.

All the motors, gears and electrically driven accessories installed in the classified area should be intrinsically safe, flame proof & with IP 65, where required.

Environmental Conditions

Temperature range: -3°C~50°C

Atmospheric Relative humidity: RH25~100%

Available Utilities

Following utilities are available:

Electricity 380 - 400 volts, 50 Hz, three phase

Electricity 220 – 230 volts, 50 Hz, single phase

Raw Water at 3 bar

Steam at 6 bar pressure

Documentation

Detailed drawings & specifications of the equipment.

Detailed erection drawings and civil structure designs along with foundation load.

Specifications of materials not included in the supplies but necessary for integration of the offered system.

Detailed maintenance, calibration and services manuals.

Safety and labour protection instructions.

Comprehensive operating manuals of CVT system and pressure devices.

Schematic diagram of electric control circuits

Software package and program.

P&I drawings.

List of similar equipment installed by firm in Pakistan/abroad must be endorsed for reference.

All licensed software must be with life time access along with suitable backup on DV
