| № | Parameter name | Required parameter value |

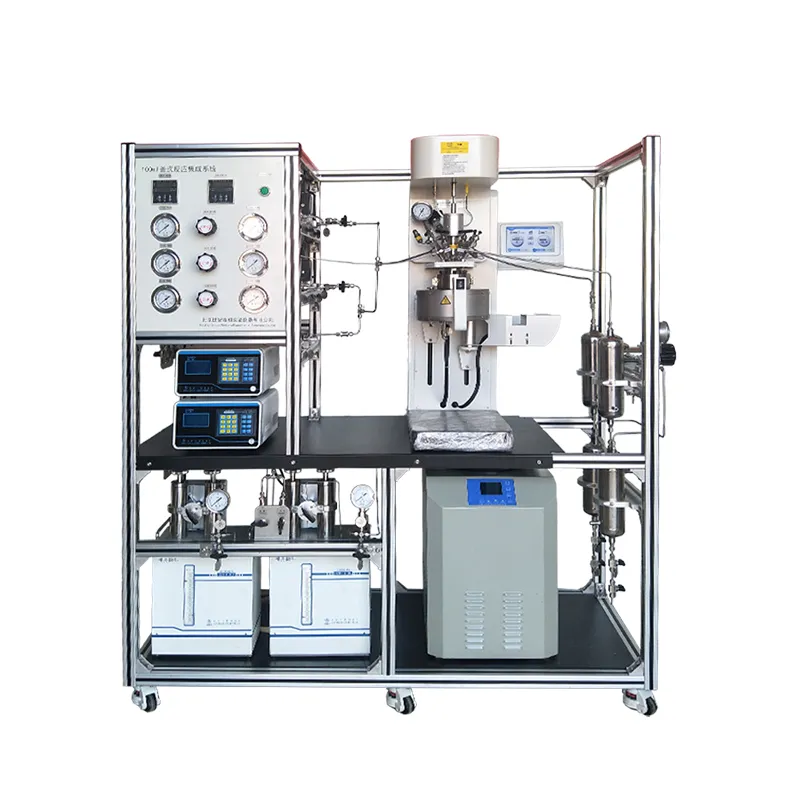

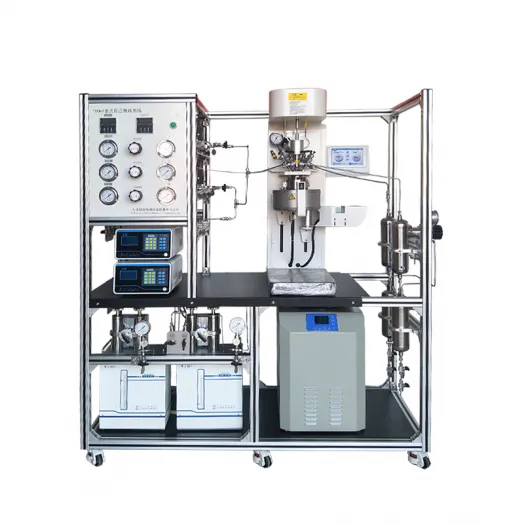

| 1 | System based on a high-pressure reactor with a stirrer System includes:• reactor,• condenser,• separator,• pressure regulator• liquid mass flow regulator• parameter control system• software for remote control of system parameters• frame made of aluminum profileAvailability of a lifting mechanism for the reactor: pneumatic drivePlacement: floor with wheelsets |
| 2 | Reactor, pc. | 1 |
| 2.1 | Volume, L. | 2 |
| 2.2 | Max. operation pressure, bar | 300 |
| 2.3 | Max. pressure temperature, оС | 450 |
| 2.4 | Material of construction of reactor | T316SS or analog |
| 2.5 | Stirrer design | overhead drive direct drive (not belt) |
| 2.6 | Adjustable rotation speed of the mixing element, rpm, not less | 500 |
| 2.7 | Mixing element motor power, W, not less | 180 |
| 2.8 | Electric heating power, not less | 4 kW |
| 2.9 | Ports: | Cooling coil: 1/4" ports;Valve (free): 1/4";Gas supply valve with deep tube: 1/4";Bleed valve: 1/4";Bottom drainvalve: 3/8"; |
| 2.10 | Pressure transducer | Availability, up to 300 bar |
| 2.11 | Pressure gauge | Availability, scale from 0 to 300 bar |
| 2.12 | Thermocouple type "K" and thermowell | Availability |
| 2.13 | Sealing element type | Teflon (PTFE) and reinforced graphite flat gasket |
| 3 | Condenser | 1 |
| 3.1 | Type of condenser | Shell and tube for liquid coolant |
| 3.2 | Max. pressure, bar | 300 |
| 3.3 | Max. temperature, оС | 300 |
| 3.4 | Maintaining pipeline temperature from reactor to condenser | Using electric heating |
| 3.5 | Material of construction of condenser | T316SS or analog |
| 4 | Pressure regulator | 1 |
| 4.1 | Type of regulation | Manual, "up to yourself" |
| 4.2 | Maximum temperature, оС, not less | 200 |
| 4.3 | Max. pressure, bar, not less | 300 |
| 4.4 | Material of construction | T316SS or analog |
| 5 | Separator | 1 |
| 5.1 | Volume, L. | 1 |
| 5.2 | Working pressure, bar | 10 |
| 5.3 | Working temperature, оС | 100 |
| 5.4 | Temperature control type | Jacket for liquid heat and coolant |
| 5.5 | Material of construction | T316SS or analog |
| 6 | Mass flow regulator | 1 |
| 6.1 | Maximum flow, grams per hour, not less | 10 000 |
| 6.2 | Minimum flow, grams per hour, not less | 1 000 |
| 6.3 | Max. pressure, bar, not less | 200 |
| 6.4 | Connection interfaces | RS232/Modbus |
| 6.5 | Max. temperature, оС, not less | 60 |
| 6.6 | Input and output ports | 1/4" |
| 7 | Сontrol system | 1 |
| 7.1 | Digital temperature controller (PID); | Availability |
| 7.2 | digital controller of overheating temperature parameters | Availability |
| 7.3 | digital indicator for monitoring pressure parameters | Availability |
| 7.4 | digital RPM (rpm) controller (stirrer rotation speed); | Availability |
| 7.5 | Fluid flow | Availability |
| 7.6 | emergency warning and shutdown system | Availability |
| 7.7 | Power supply | 220 V/1 phase/50Hz |
| 8 | Software for remote system management- The ability to continuously monitor and record the main technological parameters, must be equipped with a system for monitoring and controlling the operating parameters of the units (equipment) of the installation (temperatures, pressures, etc.), with this information displayed on the operator's HMI panel;- The system must ensure the collection of archival data and the presentation of trends based on current parameter data. Functional:- presence of a mnemonic diagram;- availability of a chart of key indicators in real time (temperature, pressure, stirrer speed, flow);- possibility of step-by-step temperature changes over time (cyclogram);- the ability to upload to a settlement document-table (txt, xls, nl);- availability of notification and emergency shutdown functions in case of malfunctions- availability of communication with the autonomous control panel via at least a 4-channel galvanically isolated bridge of the USB interface to RS interfaces; - the strength of galvanic isolation is at least 1000V;- work via USB 2.0 Full-speed protocol or equivalent.- selection of the interface type (RS232, RS422, RS485) for each channel must be carried out using internal jumpers;- the ability to use internal matching resistances in each channel using jumpers: availability;- the presence of information exchange indicators for each channel in the form of green and yellow LEDs on the front panel for the operator to quickly understand the equipment status;- the ability to enable or disable any of the channels using special commands from the computer;Availability of connectors for connecting to peripheral equipment and PC. | Availability |
