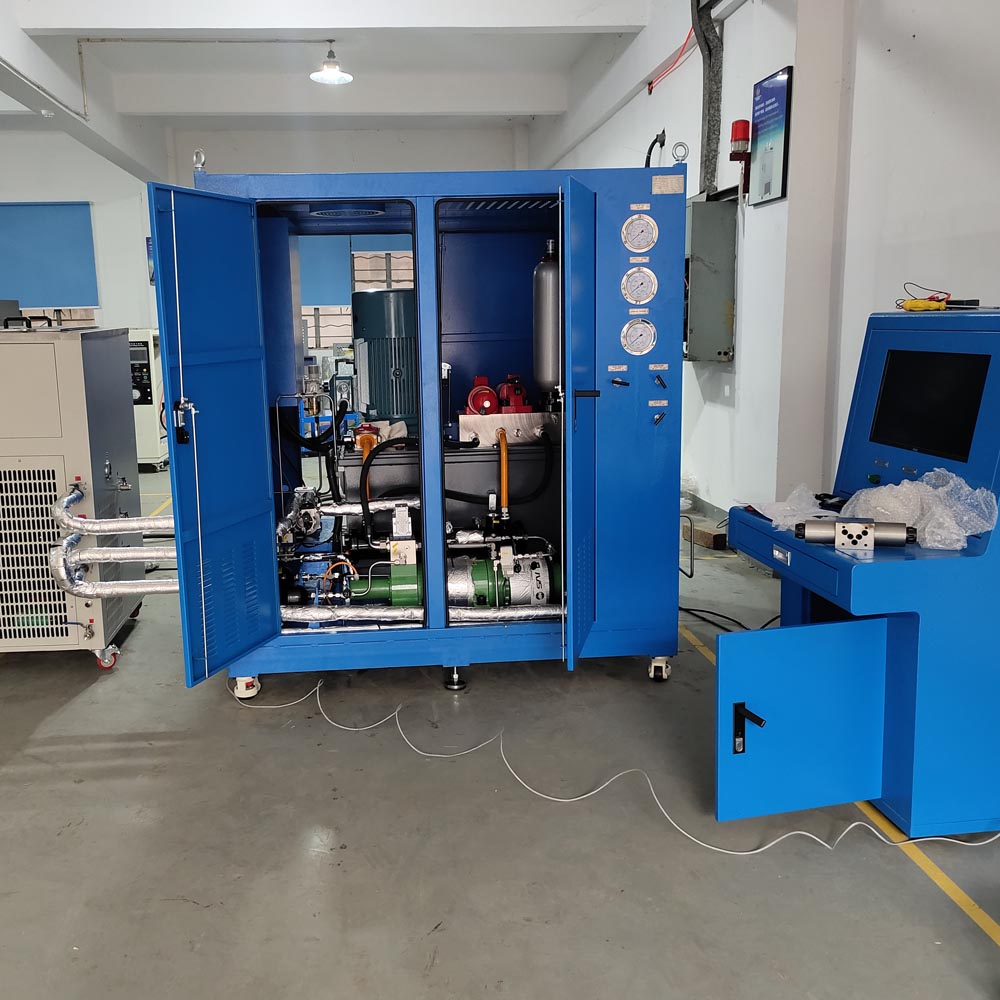

Pressure Reducing Valve Performance Testing Machine

Pressure Reducing Valve Performance Testing Machine



A certain air pressure is introduced into the pressure reducing valve through the pressure reducing valve performance testing machine, and the air is released according to the preset curve through automatic control.

Main technical parameters:

1. When the intake pressure is charged to 47±2MPa, the outlet pressure is not less than 6MPa, then the intake pressure is reduced. When the intake pressure is 30MPa, 20MPa, 10MPa, and 6MPa, the outlet pressure is detected to be between 5.5-4.5MPa. After the detection, the exhaust pressure is released and the continuous measurement is performed, taking the five points of 47, 30, 20, 10, and 6; ,

2. Filling with 60MPa ammonia.
