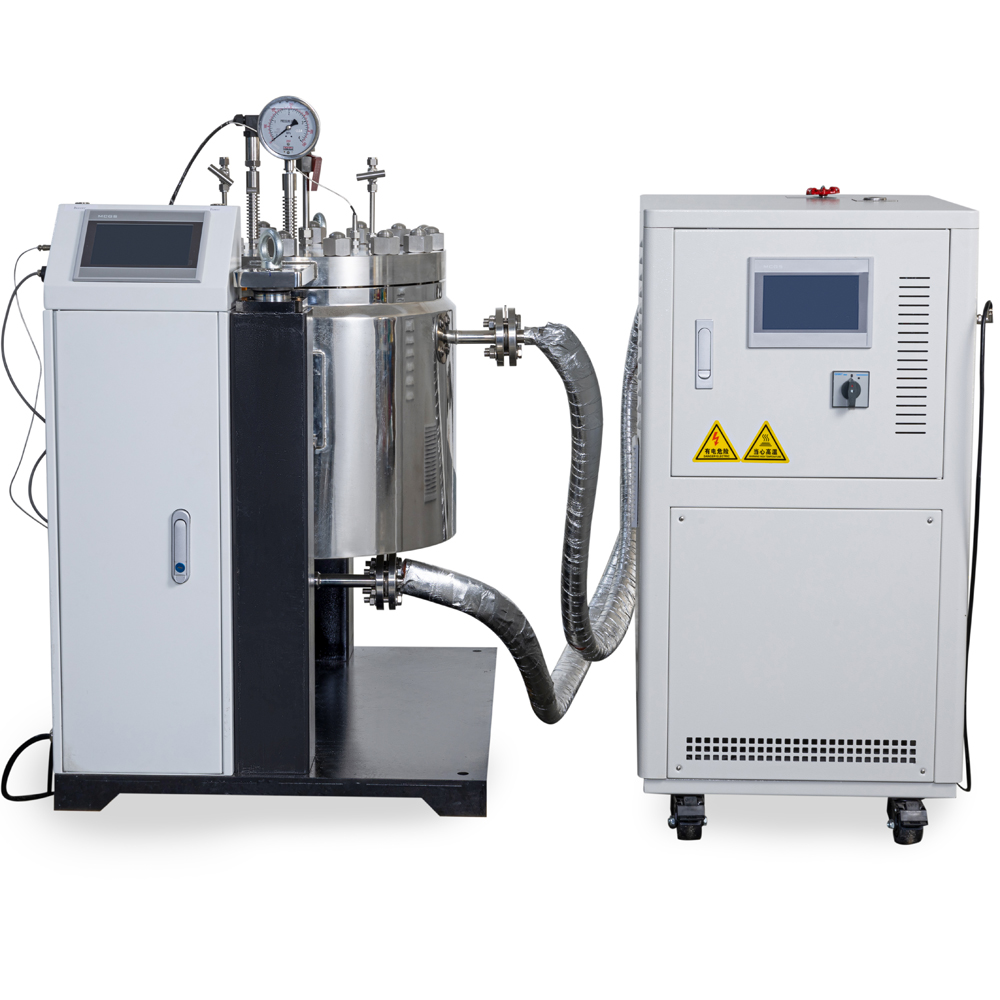

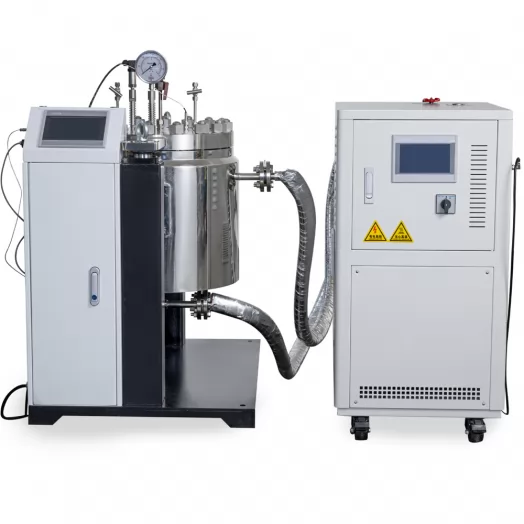

Gas Mixing & Boosting System
Gas mixing and boosting system, the equipment mixes the nitrogen, gas cylinder gas source and carbon dioxide gas cylinder gas source provided by the customer through the gas mixing ratio device in a precise proportion and outputs evenly, and then continuously boosts the pressure and inputs it into the reactor through the boosting equipment, and runs the reaction under constant pressure in the reactor. After completion, the pressure is released and the pressure relief pipe is introduced into the pressure relief anechoic room; the equipment uses IVS special large-flow pneumatic gas booster pump for boosting, and uses big-brand pneumatic control components. The equipment has a large flow, is safe and reliable, and the pipeline system is made of FITOK and 316SS stainless steel. The equipment uses high-pressure ferrule sealing connection, the system has no leakage, and it is very convenient to disassemble and assemble, not easy to damage, and can be disassembled and assembled many times. It is suitable for gas boosting such as carbon dioxide and nitrogen, mixed gas boosting, supercritical gas boosting, foaming/reactor boosting, etc.
Technical Parameters :
Working gas source : carbon dioxide, nitrogen, etc. (the solubility ratio is specified as
required) ;
Gas cylinder source pressure : 2~12MPa ;
Working pressure: Max 60MPa ;
Safety protection : The pressure upper limit is automatically shut down and the pump is
automatically controlled + 60MPA adjustable safety valve is used to protect the reactor from
Exceeding, Pressure, double protection; this booster pump: pneumatic gas booster pump, flow
rate greater than 500NL/min (about 590NL/min);
control accuracy : 1%FS~2% FS ;
Pressure detection accuracy : 1 % F.S ;
Filling time : The reactor with a mixture of carbon dioxide and nitrogen at 60Mpa takes about
30 minutes to fill ;
Operating environment temperature : -20~45℃ ;
Medium temperature : room temperature ;
Control mode: manual operation, automatic control of maximum safety pressure ;
Equipment use conditions, driving gas source: pressure: 0.5~0.65MPa, flow rate: greater than
2.0 cubic meters per minute
